Home > products > Screw and Nut Forming Dies >

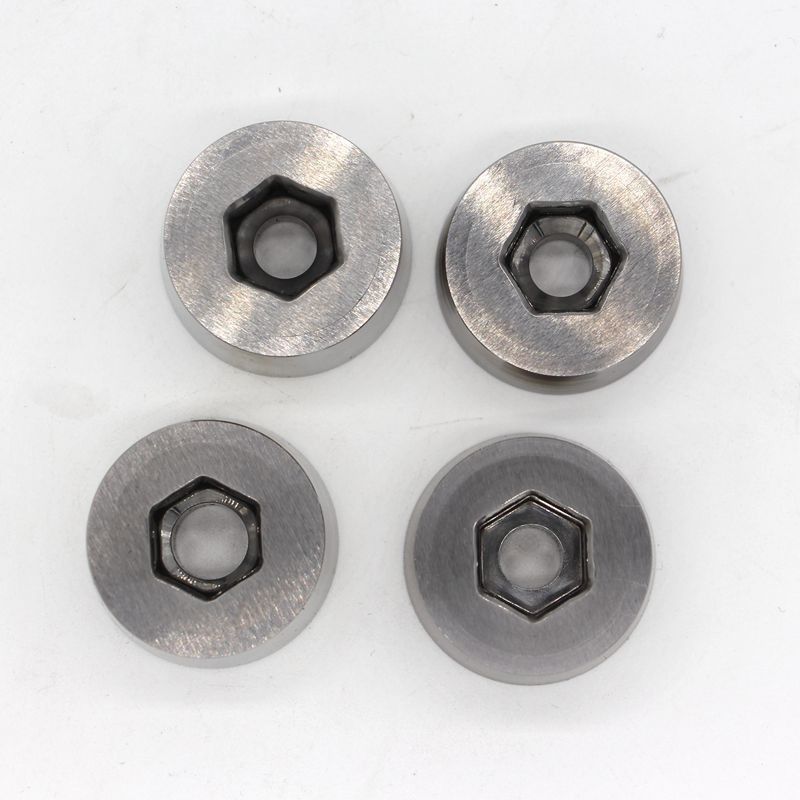

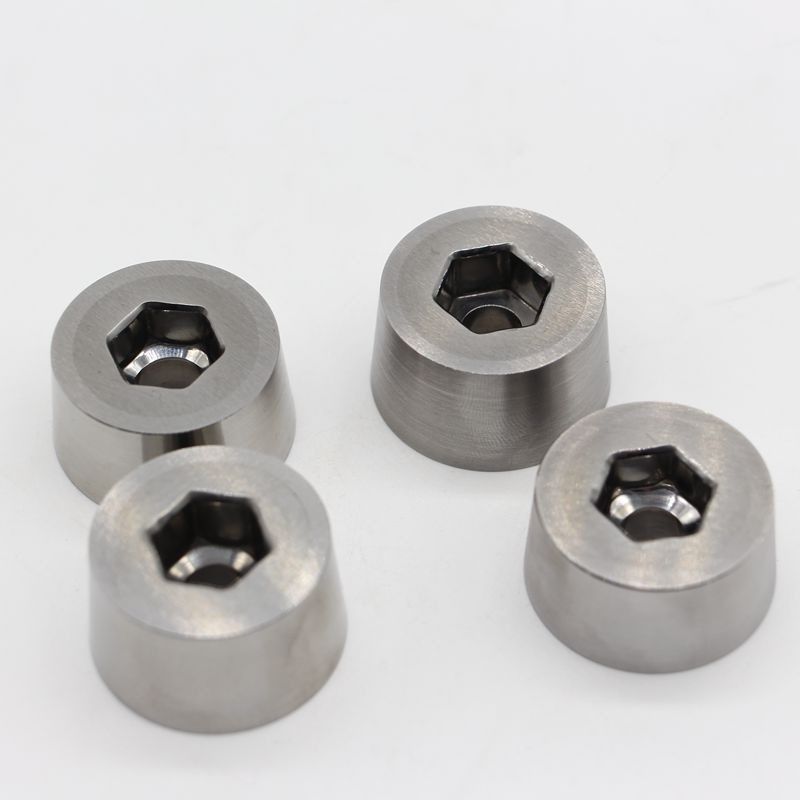

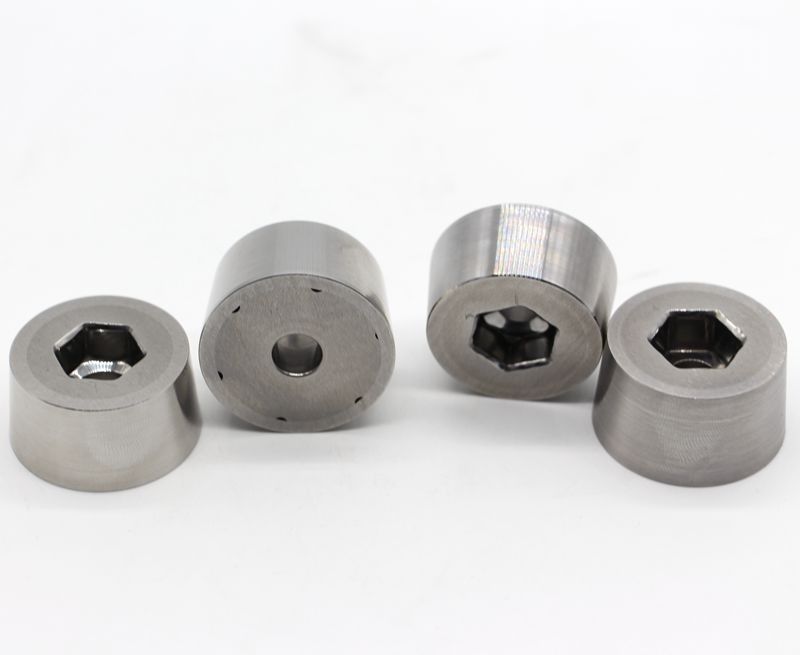

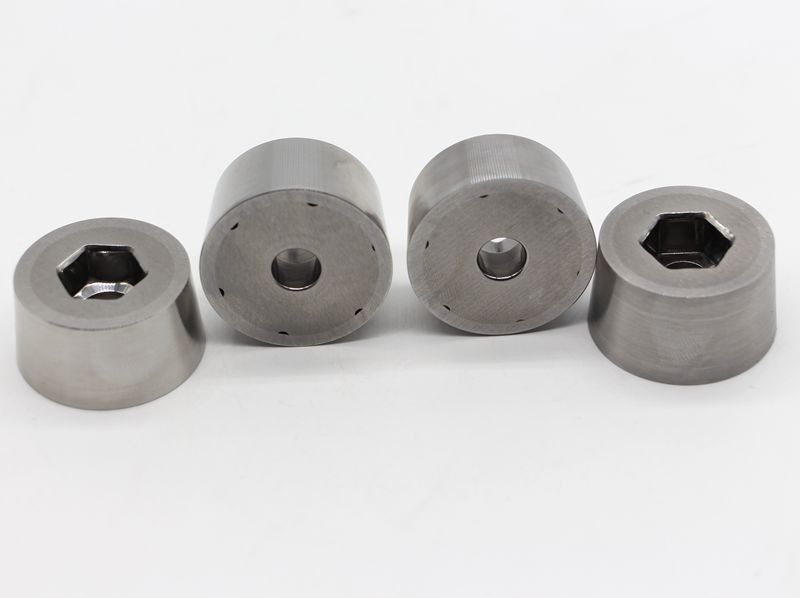

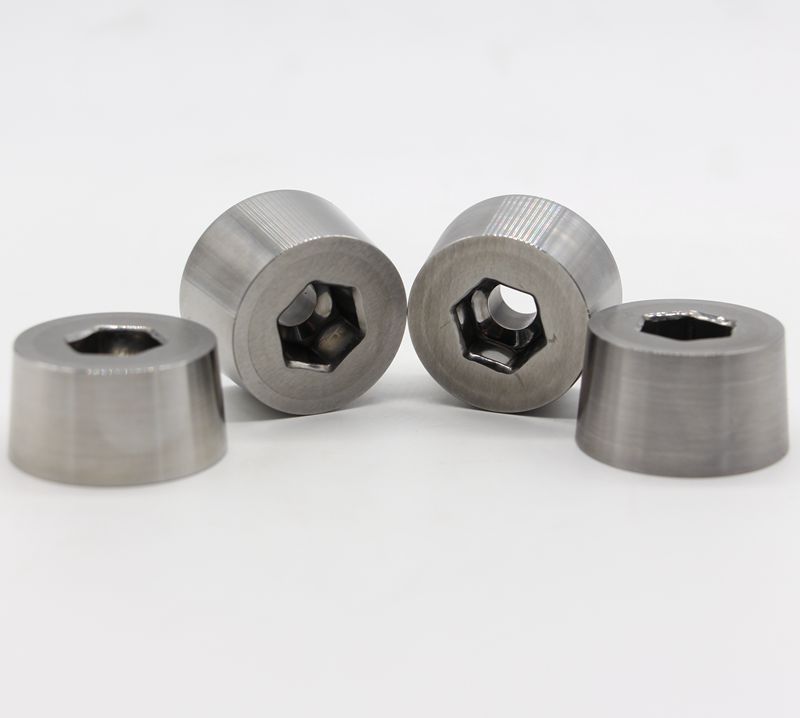

Tungsten Carbide Wire Drawing Dies / Carbide Mold For Bolt Nut

Carbide Wire Drawing Dies

Tungsten Carbide Wire Drawing Dies

Tungsten Carbide Mold

Place of Origin:

Chongqing, China

Brand Name:

HENGHUI or OEM

Model Number:

OEM

Request A Quote

Tungsten Carbide Wire Drawing Dies / Carbide Mold For Bolt Nut

Product Details

Shaping Mode:

WIRE DRAWING DIE

Product Material:

Steel

Product:

WIRE DRAWING DIE For BOLT NUT

Name Of Product:

Tungsten Carbide WIRE DRAWING DIE / Carbide Mold For BOLT NUT

Material:

Tungsten Carbide WIRE DRAWING DIE For BOLT NUT

Shape:

Customized WIRE DRAWING DIE For BOLT NUT

Grinding Precision:

0.02mm WIRE DRAWING DIE For BOLT NUT

Hardness:

According To The Material Of WIRE DRAWING DIE For BOLT NUT

Standard:

DIN, ANSI, GB, ISO Etc.

Grade:

VA80, VA90

Surface:

Machined Or Blank WIRE DRAWING DIE For BOLT NUT

Properties:

Wear Resistance / Long Lifetime WIRE DRAWING DIE For BOLT NUT

Application:

NUT

Port:

Chong Qing, Shang Hai, Shen Zhen Or As Client's Requirement.

Highlight:

Carbide Wire Drawing Dies

Tungsten Carbide Wire Drawing Dies

Tungsten Carbide Mold

Payment & Shipping Terms

Price

$30.00 - $50.00/sets

Packaging Details

Packaging detail of WIRE DRAWING DIE For BOLT NUT: Wooden box; export standard package, or as client's requirement.

Supply Ability

5000 Set/Sets per Month

Our Advantages Online Service Quick Quote/Delivery for Screw Threading Dies

Get Best Price

Continuous Innovation for Future Development Screw and Nut Forming Dies

Get Best Price

AlTiN Surface Screw Cutting Dies for Grade YG6/YG8/YG10X/YG20C

Get Best Price

Long-Lasting Surface Coating Threading Screw and Nut Molds for Manufacturing

Get Best Price

Contact Now

Product Description

Tungsten Carbide WIRE DRAWING DIE / Carbide Mold For Bolt Nut

Products Description

Insert Material:

We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
		KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
		KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
		KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
		KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
		ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
		EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
		VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
		VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
		EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:

Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:

TiN / TiAlN

Process

Factory

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Exhibition

Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.

Packing and Delivering

Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.

Inspection equipment

Our Advantages

Advantages

1.High quality
2.Reasonable price
3.On time delivery
4.Good After-sale service
5.Strict quality control

We will offer you

1.In-time response on letters, telephone calls or fax
2.In-time supply the quotation and mold designs
3.In-time communication on the technical points
4.In-time sending pictures for the mold machining progress and mold finishing
schedule
5.In-time mold test and sample delivery
6.In-time mold delivery From Alibaba China Supplier.

FAQ

Q1::Are you a factory or trading company?
A1:We are a factory, Henghui has 7,000 square meters of manufacturing plants
and R&D bases
Q2:Where is your factory located? How can I visit there?
A2:Our factory is located in Hailong Village, Baishiyi Town, Jiulongpo District,
Chongqing City, China.
All our clients, from home or abroad, are warmly welcome to visit us at anytime!
Q3:What is the material of your products?
A3:The materials are DC53,SKD11,D2,SKH-9,SKH-51, or as our clients’ requirements.
Q4: The maximum press your factory have available ?
A4: Our factory has 30T,60T,160T punching machines
Q5::How does your factory do regarding quality control?
A5: Quality is priority. Henghui people always attach great
importance to quality controlling from the very beginning to
the very end. All the molds, the QC measure with three-D
measuring equipments regularly.
