Name: Henghui Factory Sale Perfect Function M2 Wood Screw Thread Rolling Die
Brand: Dongguan Fanchi Mold Technology Co., Ltd
SKU: Customized
Price: 45.00 USD
Availability: InStock

Home > products > Thread Rolling Dies >

Henghui Factory Sale Perfect Function M2 Wood Screw Thread Rolling Die

dc53 thread rolling dies

steel thread rolling dies

dc53 thread rolling machine dies

Place of Origin:

Chongqing, China

Brand Name:

Henghui

Model Number:

Customized

Request A Quote

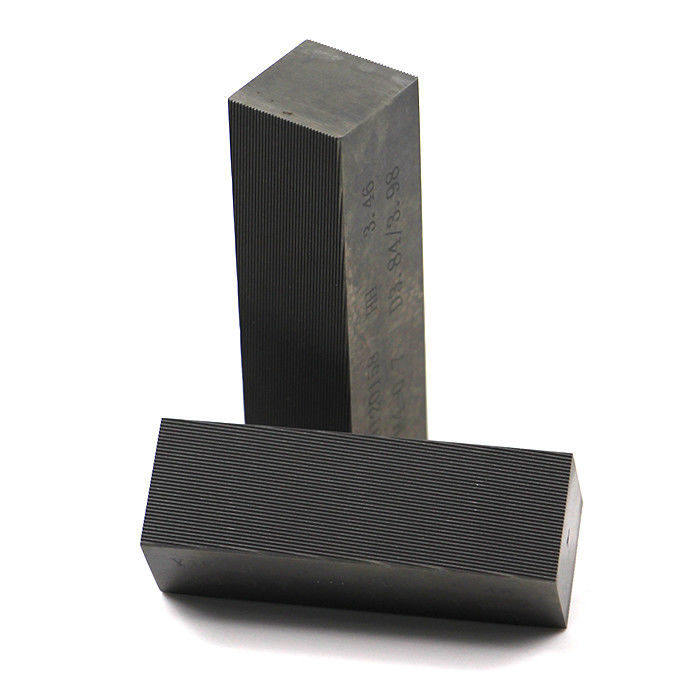

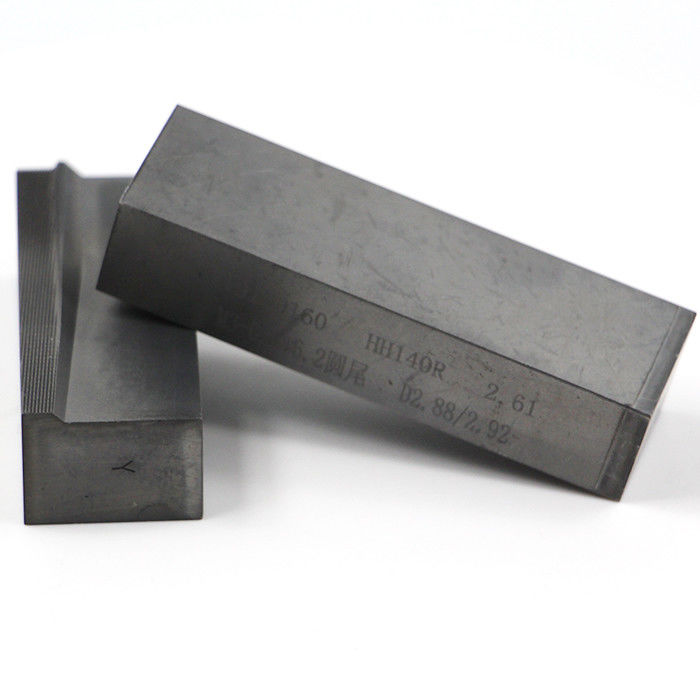

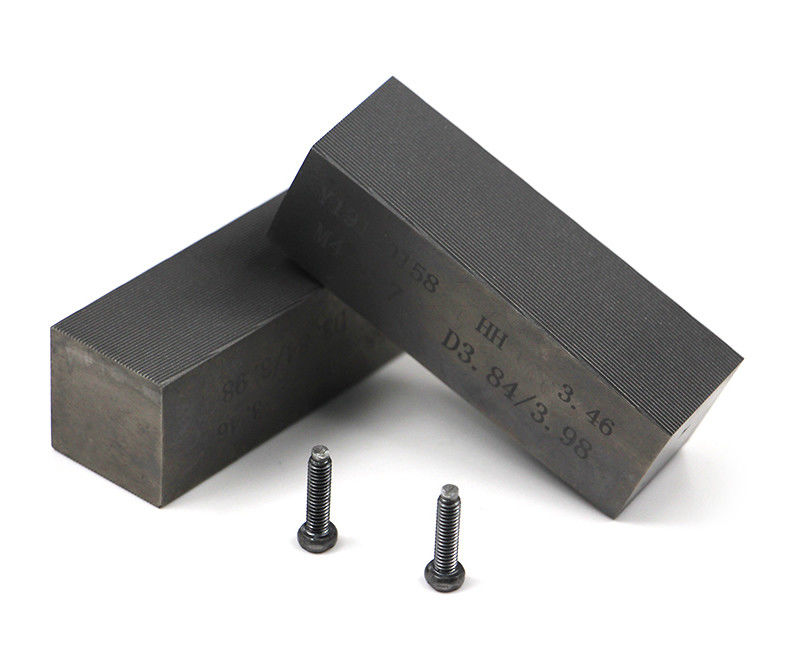

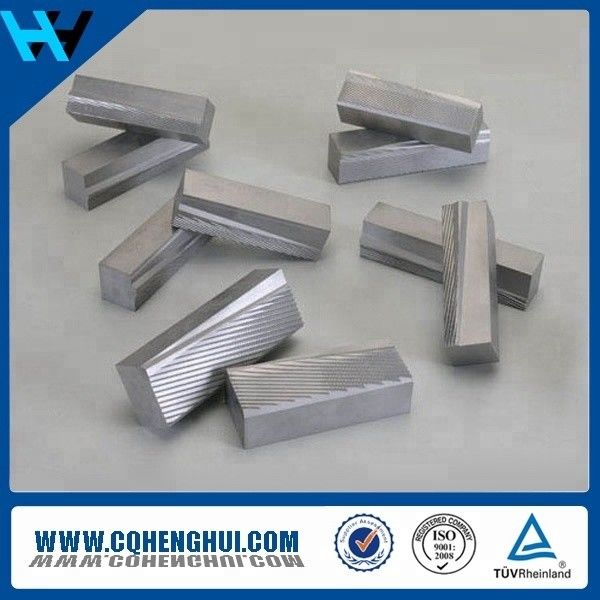

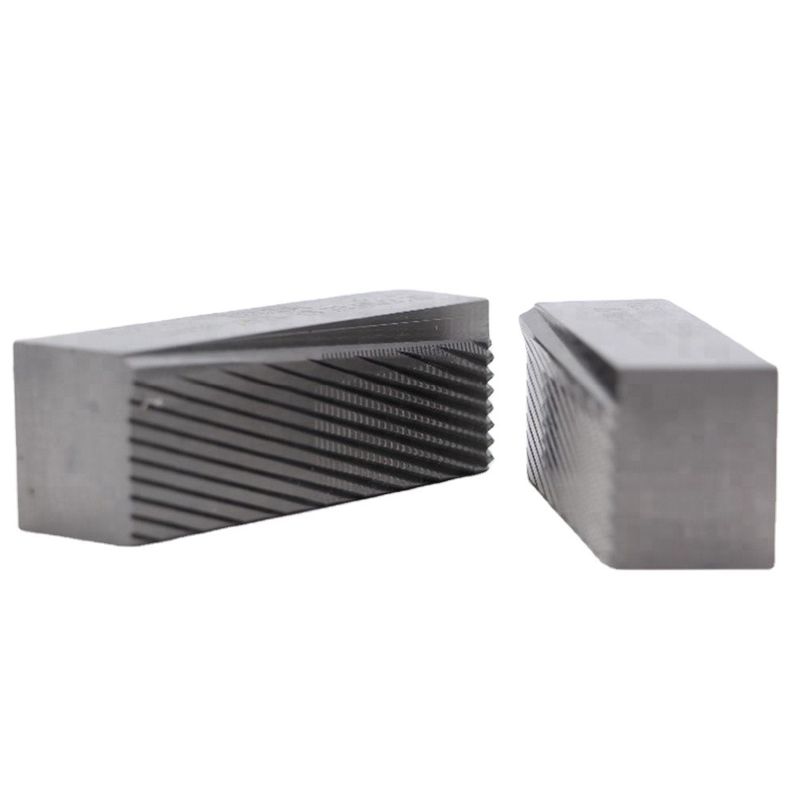

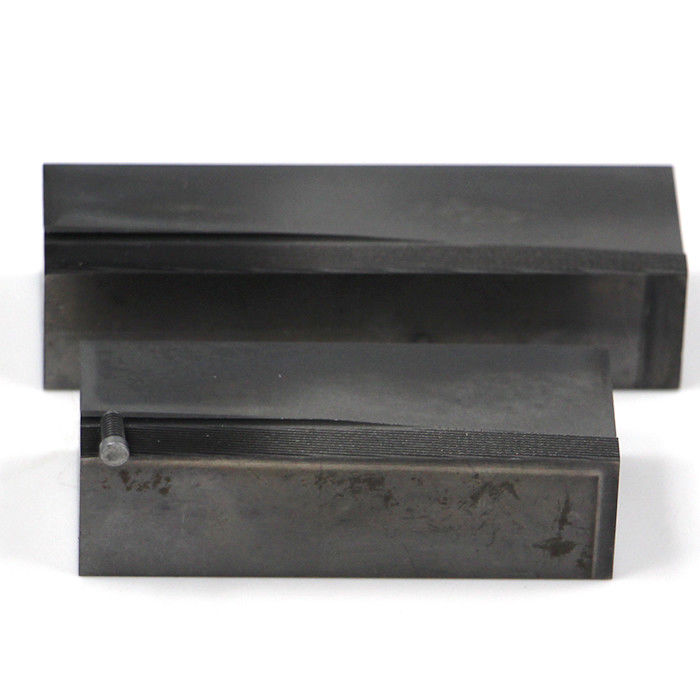

Henghui Factory Sale Perfect Function M2 Wood Screw Thread Rolling Die

Product Details

Shaping Mode:

Punching Mold

Product Material:

Steel

Product:

WOOD SCREW THREAD ROLLING DIE, Perfect Function M2 Wood Screw Thread Rolling Die

Material:

DC53

Obliquity Of Main Spindle:

±5° For WOOD SCREW THREAD ROLLING DIE

Pressure Of Roller Max:

150kn For WOOD SCREW THREAD ROLLING DIE

Feed Speed Of Movable Shaft:

5mm/s For WOOD SCREW THREAD ROLLING DIE

Center Distance Of Die Spindle:

125-225mm For WOOD SCREW THREAD ROLLING DIE

Thread Angle:

60±5°

Hardness:

According To The WOOD SCREW THREAD ROLLING DIE Material

Warranty:

1 Year For WOOD SCREW THREAD ROLLING DIE

Size:

According To Client's Requirement

Port:

Shanghai, Guangzhou, Chongqing

Name:

Thread Rolling Dies

Highlight:

dc53 thread rolling dies

steel thread rolling dies

dc53 thread rolling machine dies

Payment & Shipping Terms

Price

$40.00 - $50.00/sets

Packaging Details

standard exporting packing for WOOD SCREW THREAD ROLLING DIE and could design all kinds packing according client requirement

Supply Ability

50000 Set/Sets per Month WOOD SCREW THREAD ROLLING DIE

2023 Customized DC53 H9+N Hot Sales Screw Die Of Flat Thread Rolling Dies

Get Best Price

Video

Top Hot Sales Products Thread Rolling Plate Screw Thread Rolling Dies

Get Best Price

Video

Henghui Forging Mould Shaping Product Thread Rolling Dies For Making Drywall Screw

Get Best Price

Video

DC53 High Quality Drywall Screw ,Chipboard Screw Thread Rolling Die

Get Best Price

Contact Now

Product Description

Products Description

Material:

Our main case material are DC53+N or H9+N

Size:

Length*Height*thickness(for example, 90/105x25x25mm)

DC53：

Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.95	0.89	0.3	0.018	0.006	7.7	1.92	0.75	0.91

MACHINE TYPE	s	H	L1(FIXED)	L2(MOVING)
0	19	25	51	64
3/16	25	25,38, 55	75	90
1/4	25	25,40, 55, 65,80	100	115
5/16	25	25,40, 55, 65,80, 105	127	140
3/8	25	25,40, 55, 65,80, 105	150	165
1/2	35	55, 80, 105, 125,150	190	215
3/4	38	55, 80, 105,125,150	230	265
003	15	20	45	55
004	20	25	65	80
4R	20	25	60	70
6R	25	25, 30, 40, 55	90	105
8R	25	25, 30, 40, 55, 65	108	127
250	25	25, 40, 55	110	125
DR125	20.8	25, 40	73.3	86.2 (5。）
DR200	20.8	25, 40, 53	92.3	105.2 (53)
DR250	23.8	25, 40, 54	112	131.2 (Í)

* Long life of the thread rolling die

Henghui is specialized in the making of screw thread rolling dies, made of best raw materials available in the market. These screw thread rolling dies are designed professionally by our engineers per customers’ specifications or work pieces. Each staff tries try his best to have screw thread rolling dies with high accuracy, high strength and high stability by high skills and strict quality control system.Therefore the screw thread rolling dies life is longer than dies produced by other companies based on the same materials and the same price or even lower price.
Henghui manufacture thread rolling dies taking the needs of our customers very much into account. The range of thread rolling dies covers most of threading machines on the market. Likewise, we cover all kinds of screw threads.
We also manufacture custom thread rolling dies to customer specifications. You can see examples of different designs and shapes in the product details page.
Furthermore, we advise our customers in choosing the type of thread rolling die that best suits their needs. You can send your technical inquiries to us, and we will be in touch within 24 hours to offer you the best solution.

Process

Factory

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Exhibition

Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.

Packing and Delivering

Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.

Inspection equipment

FAQ

Q1: How can I get a quotation from your company?

A1: Contact us.In order to quote you as soon as possible, we need the following information: drawings, Material , Quantity ,Surface treatment.

Q2: What is our lead time?

A2: This will be based on the number of products you customize and the country you are in.
