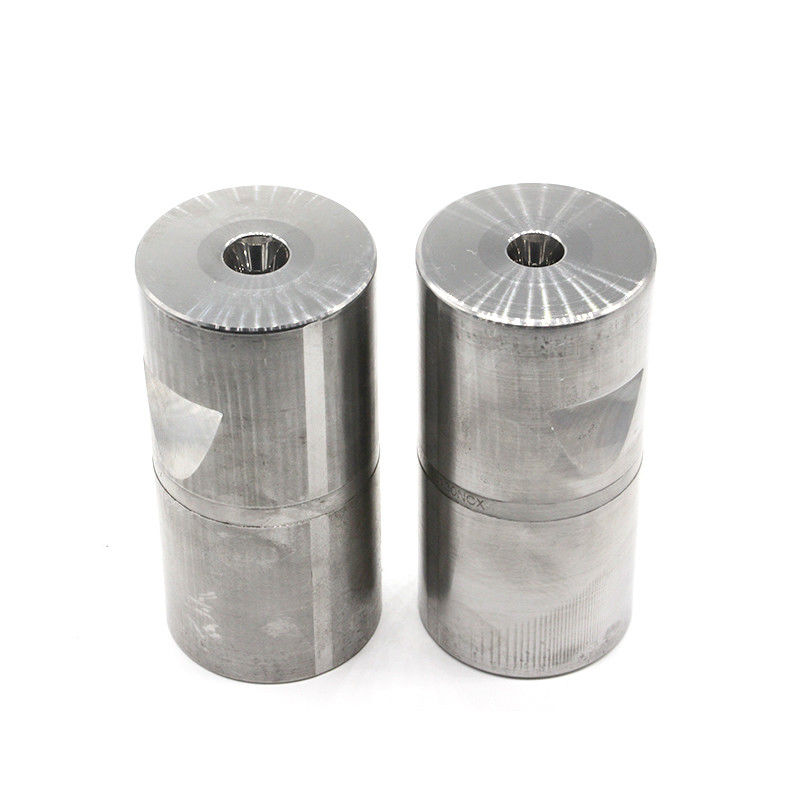

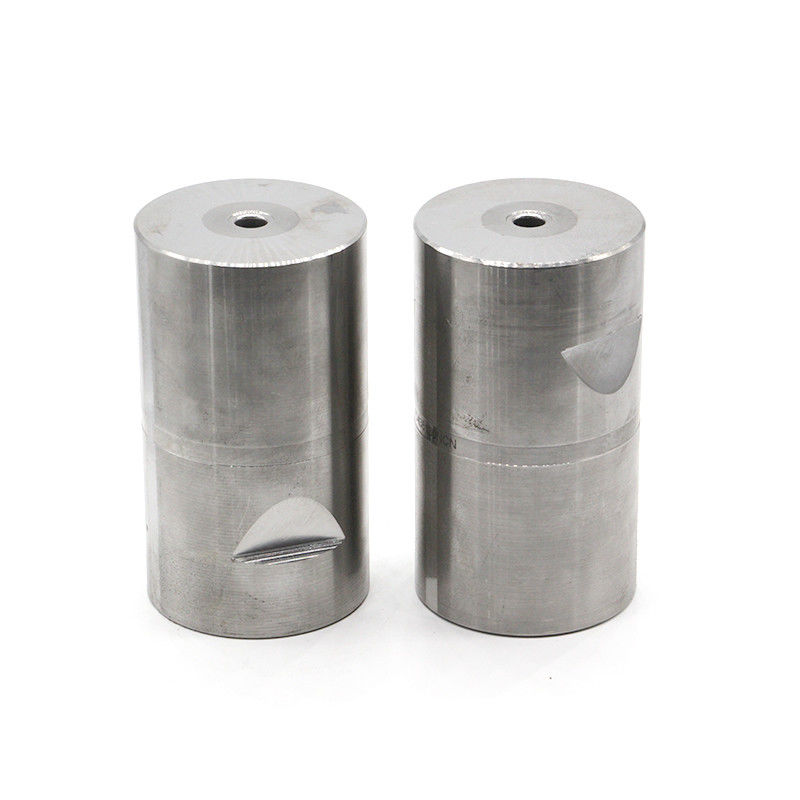

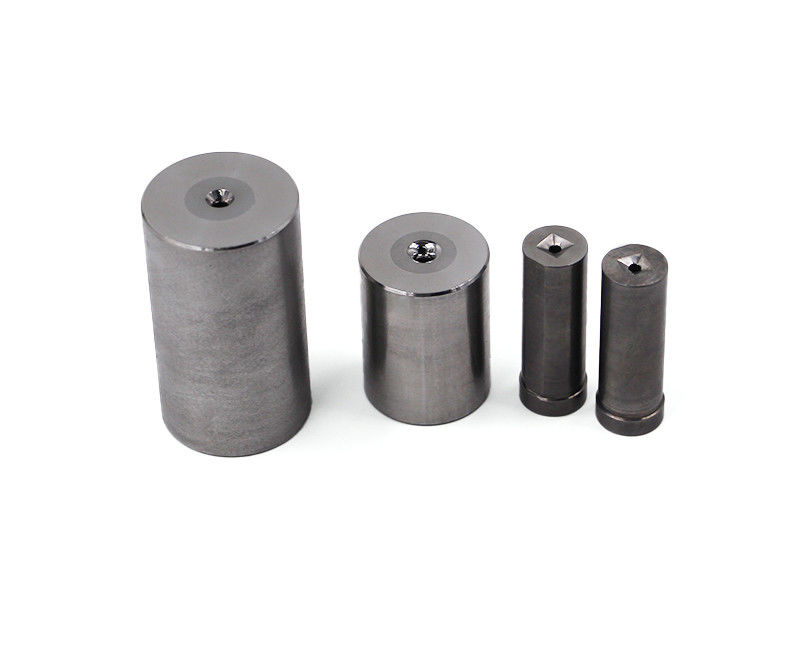

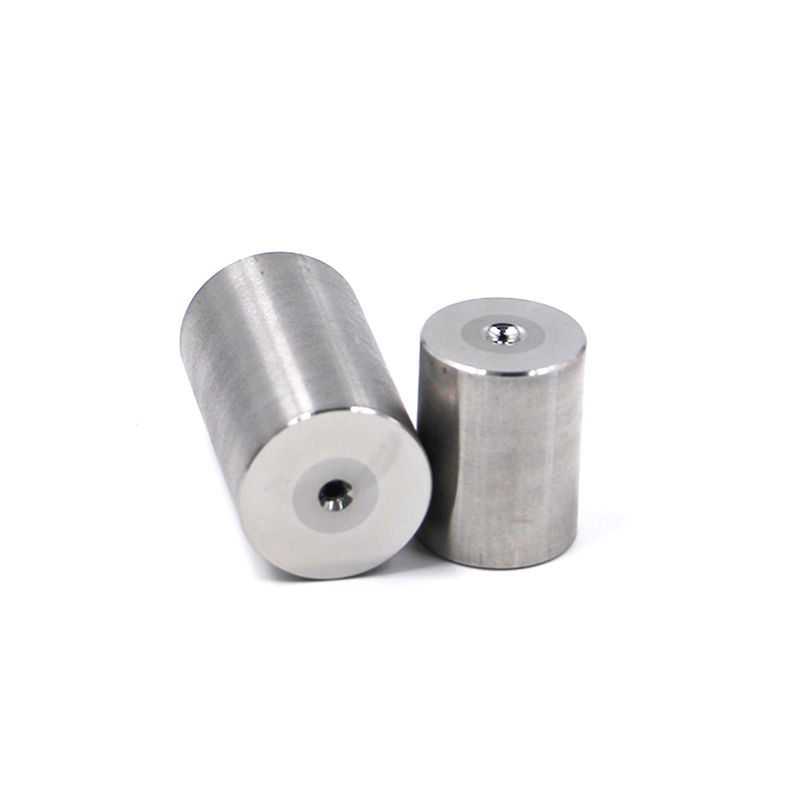

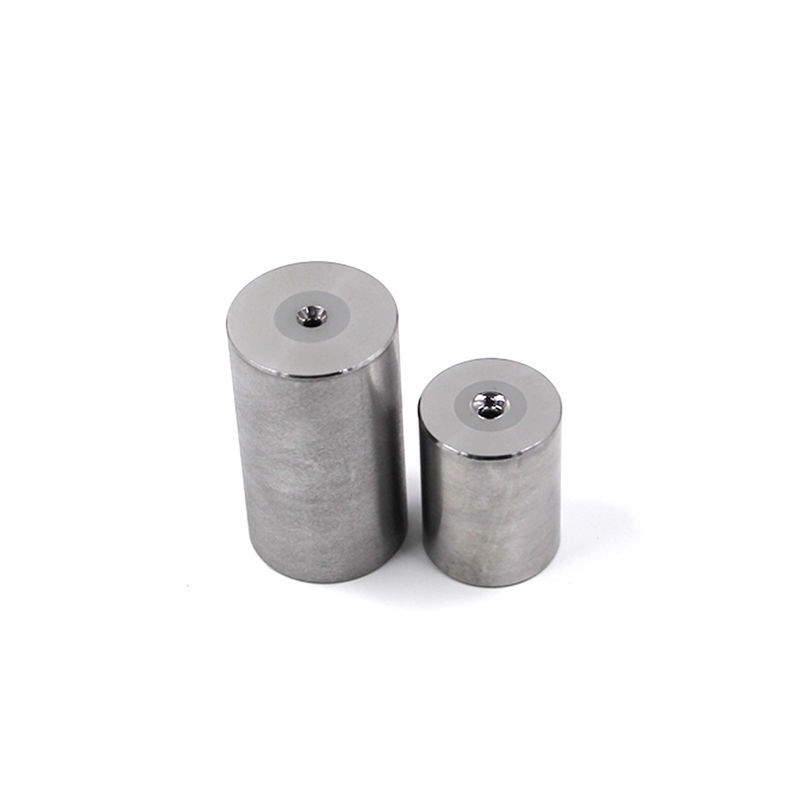

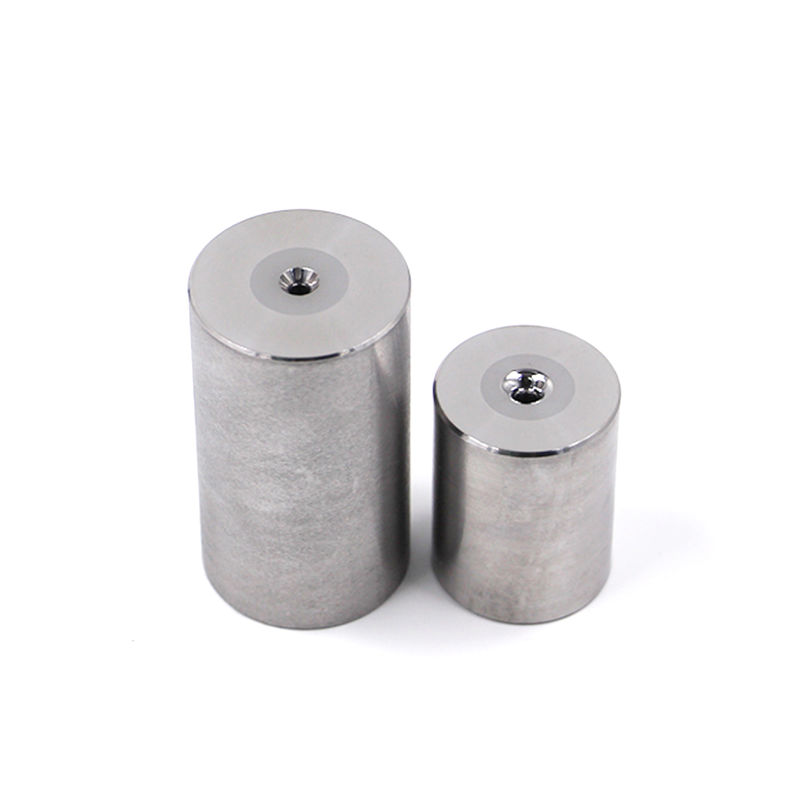

Name: Carbide Punch Die Mould Wear Resisting HSS Dies For Screw And Bolts
Brand: Dongguan Fanchi Mold Technology Co., Ltd
SKU: customized
Price: 35.00 USD
Availability: InStock

Home > products > Hex Dies >

Carbide Punch Die Mould Wear Resisting HSS Dies For Screw And Bolts

HSS High Speed Steel Dies

Carbide Punch Die Mould

Wear Resisting HSS Dies

Place of Origin:

Chongqing, China

Brand Name:

henghui

Model Number:

customized

Request A Quote

Carbide Punch Die Mould Wear Resisting HSS Dies For Screw And Bolts

Product Details

Product Name:

Punch Die Mould

Shaping Mode:

Forging Mould

Product Material:

HSS

Product:

Vehicle Mould

Application:

For Forming

Certificate:

ISO9001:2015

Keyword:

Screw Punch Die

Service:

OEM ODM

Design Software:

CAD

Advantage:

Reasonable

Surface Treatment:

Polishing

Feature:

Wear-resisting

Material:

Tungsten Carbide

Port:

Chongqing,Shanghai, Shenzhen

Name:

Hex Dies

Highlight:

HSS High Speed Steel Dies

Carbide Punch Die Mould

Wear Resisting HSS Dies

Payment & Shipping Terms

Price

$20.00 - $50.00/pieces

Packaging Details

Carton cases

Supply Ability

2000 Piece/Pieces per Month

High Precision Polishing Screw Dies , Tungsten Carbide Punch Die

Get Best Price

Tungsten Carbide Screw Dies Customized Size For Punch Case Second Punch Bushing

Get Best Price

Carbide Punch Die Mould Wear Resisting HSS Dies For Screw And Bolts

Get Best Price

Customized Mold Tungsten Carbide Segmented Dies High Strength

Get Best Price

Contact Now

Product Description

2023 Henghui High Precision Production Punch Die Mould For Screw And Bolts Carbide Die

Products Description

Insert Material:

We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
		KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
		KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
		KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
		KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
		ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
		EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
		VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
		VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
		EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:

Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:

TiN / TiAlN

Process

Factory

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Exhibition

Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.

Packing and Delivering

Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.

Inspection equipment

FAQ

Q1: How can I get a quotation from your company?

A1: Contact us.In order to quote you as soon as possible, we need the following information: drawings, Material , Quantity ,Surface treatment.

Q2: What is our lead time?

A2: This will be based on the number of products you customize and the country you are in.
