Name: Customized Trim Dies Screw Mode Mirror Polishing For Hardware Parts
Brand: Dongguan Fanchi Mold Technology Co., Ltd
SKU: customized
Price: 10.00 USD
Availability: InStock

Home > products > Trimming Dies >

Customized Trim Dies Screw Mode Mirror Polishing For Hardware Parts

Customized Trim Dies

Trim Dies Screw Mode

Trim Dies Mirror Polishing

Place of Origin:

Chongqing, China

Brand Name:

henghui

Model Number:

customized

Request A Quote

Product Details

Shaping Mode:

Die Casting

Name:

Trimming Dies

Product Material:

Steel

Product:

Screw Mode

Usage:

For Forming

Design Software:

CAD

Application:

Hardware Parts

Packing:

Carton Case

Drawing Format:

2D/(PDF/CAD)3D(IGES/STEP)

Mould Life:

250000-300000shots

Highlight:

Customized Trim Dies

Trim Dies Screw Mode

Trim Dies Mirror Polishing

Payment & Shipping Terms

Minimum Order Quantity

10 pieces

Price

$10.00/pieces >=10 pieces

Packaging Details

Carton boxes

Supply Ability

2000 Piece/Pieces per Month

Standard Tin Trimming Die Round / Rectangle Shape Customized Surface Texture

Get Best Price

M2 M35 M42 Cutting And Trimming Dies Screw Mold For Industry

Get Best Price

Hexagonal Cutting And Trimming Dies CAD Design Size Custimized

Get Best Price

Forging Mold Tin Trimming Die Customized Corrosion Resistant

Get Best Price

Contact Now

Product Description

Hot Sale High Quality Customized And Perfect Tangent Radius Trimming Die From HengHui

Products Description

Our advantage:

Advice on carbide and steel grades for different applications.
Perfect tangent radius.
Mechanical Processing surfaces when it is geometrically possible.
Large number of shapes with very high geometric complexity.
Coating, the most suitable for the materials to be cut.
Mirror polishing before and after coating.
± 0.005 mm tolerances.
Competitive prices.

Material:

Our main case material : M2, M42

M42(SKH59)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	1.06	0.3	0.31	0.018	0.002	3.74	9.29	1.1	1.34
	Cu	Ni	Co
	0.07	0.29	7.97

M2(H9)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.85	0.33	0.34	0.027	0.005	4.12	4.73	1.78	5.74
	Cu	Ni
	0.12	0.24

Surface Treatment:

PVC

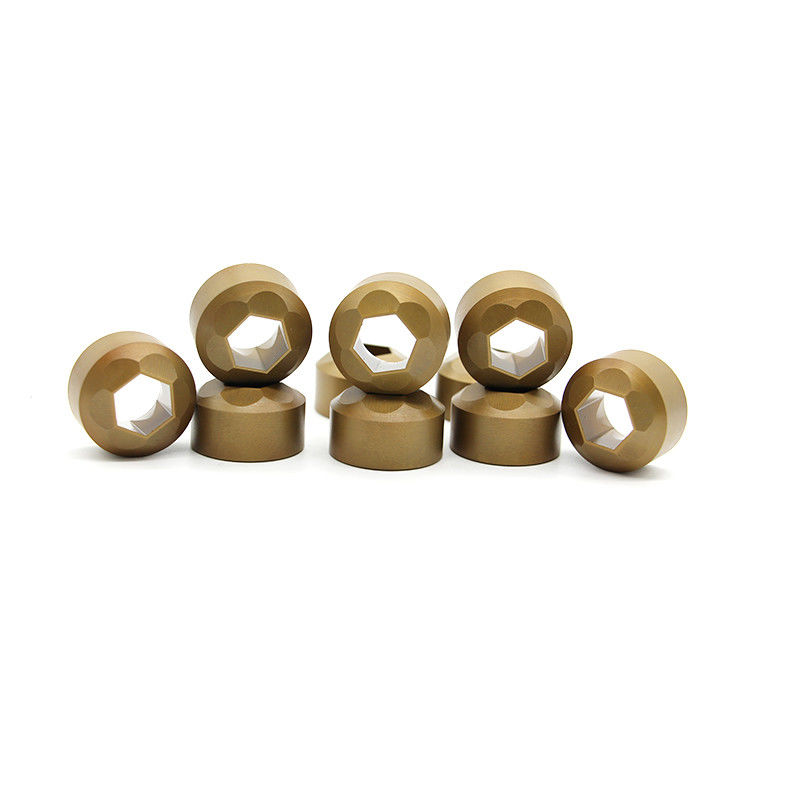

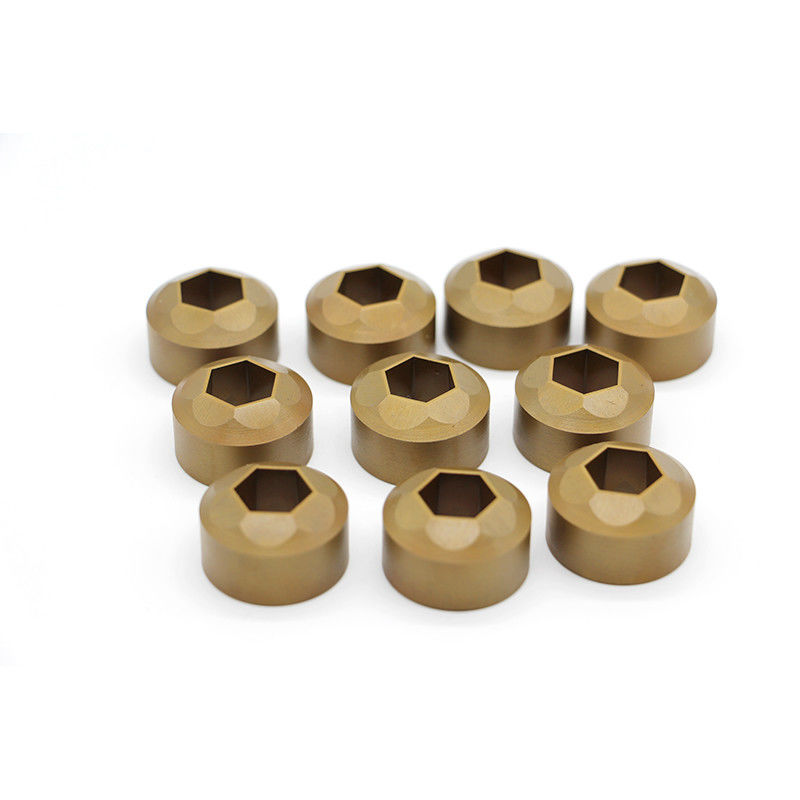

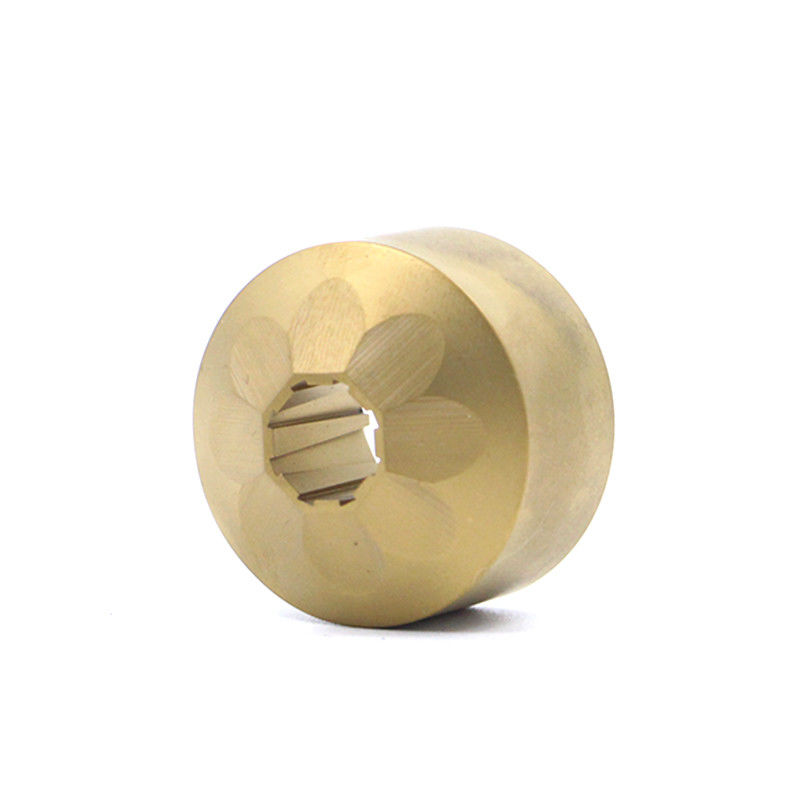

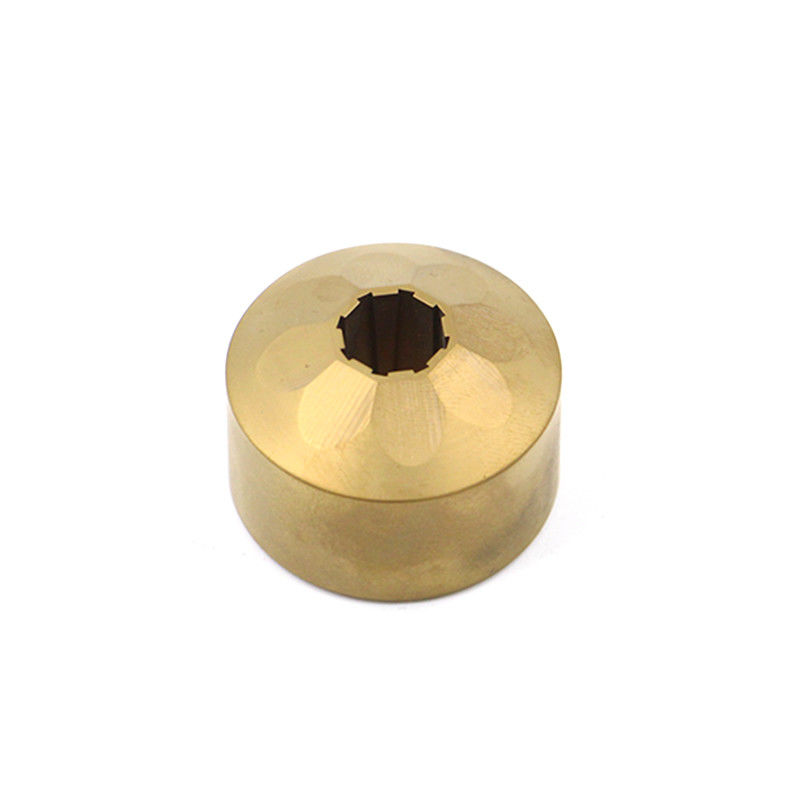

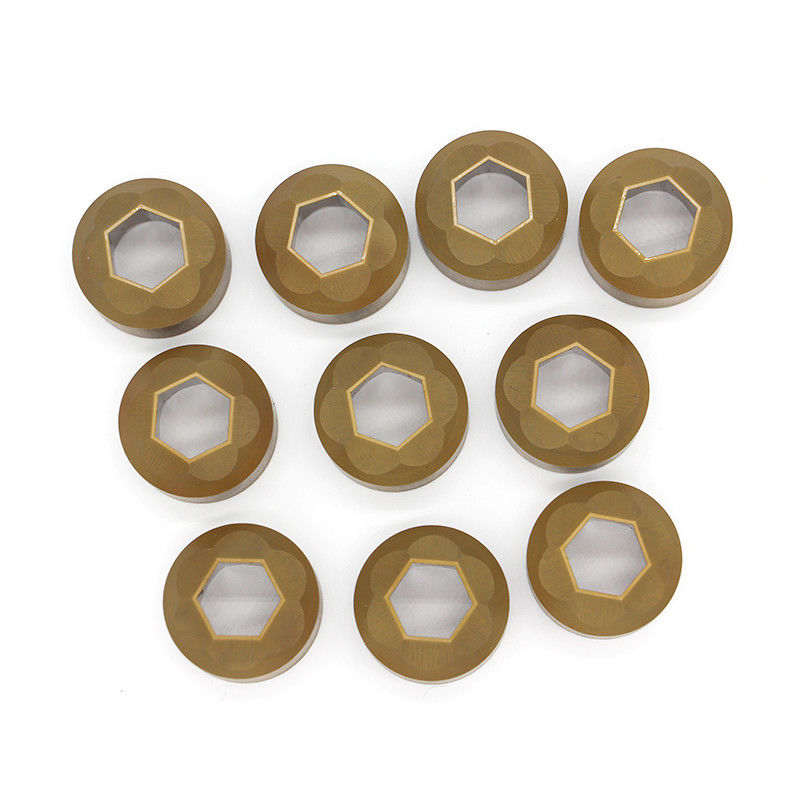

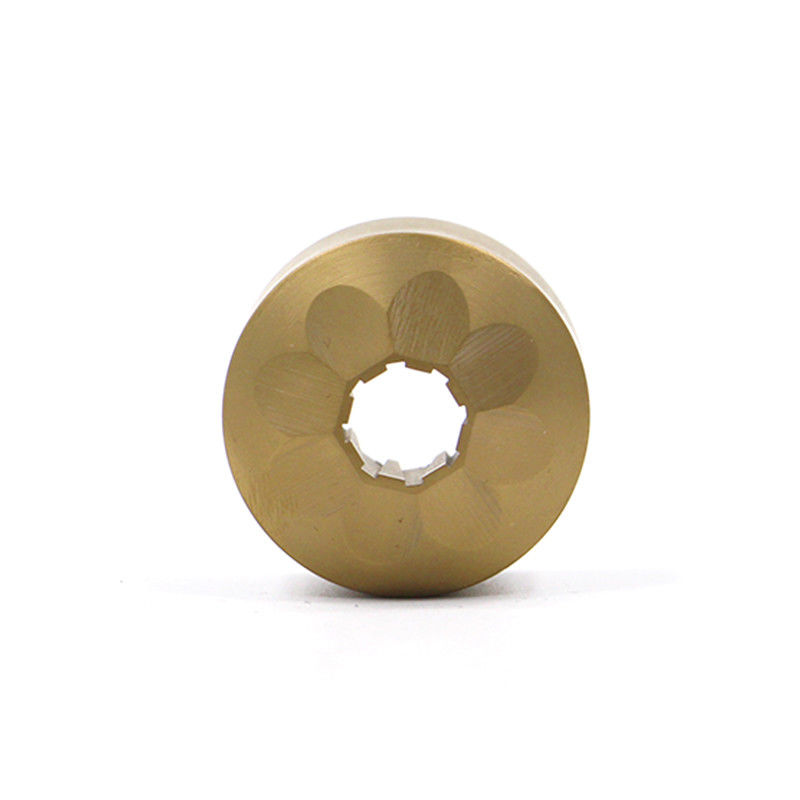

* One of the screw-formed tools, trimming die is used to form the head of screw. Square, hexagon and octangle are the common trimming die types.
* Trimming die is used to making hex head or square head bolt to form the head shape. There are many kinds of material for choice like M2 or M35 etc. In order to extend the lifetime, surface Tin/TiALN-coated is considerable.
* Trimming dies are promptly used in industry to trim the heads of bolts & screws of different shapes by removing distorted, undesirable angular part and sizes of high precision. It leads to create innovative product of perfect sizes and precision without having process of unnecessary resizing that wastes not only money but time also leaving behind more wastage. We are highly in making these kind of high tech dies of best performance with very low and competitive rate.
* The manufacture of cutting and trimming dies with different profiles is carried on high precision grinding centres, high-speed machining centres, wire and electrode EDM and CNC lathes for hard lathing (steel and carbide) based on Henghui’s technology. The technical department will help selecting the most suitable steel or carbide tool for the material to be cut.

Please indicate the diameter & height and across flat when inquire or order. Or you can send us the drawing.

Company Profie

Chongqing Henghui Precision Mold Co., Ltd located in Chongqing, which is specialized in developing, production and sales of various tungsten carbide dies manufacturer. All our products are made from high-precision manufacturing equipment and testing equipment. Using advanced processing technology to ensure products’ precision. At the same time, we also have technical engineers with many years of professional design experience, a group of experienced technical and quality inspection personnel, implemented the ISO 9001 quality management system and ERP system management. Our products and services cover the Asian market in China and are exported to Europe, America and Southeast Asia. Our carbide die have a reputation for precision, efficiency, stability and durability. We have a customer service experienced sales staff to provide customers with more attentive service and create more value.

Factory

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester,Projector,3D Image Measuring Instrument,etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Exhibition

Fasteners Exhibition in Mexico

Fasteners Exhibition In Russia

Fasteners exhibition in Turkey

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Our Advantages

Advantages

1.High quality
2.Reasonable price
3.On time delivery
4.Good After-sale service
5.Strict quality control

We will offer you

1.In-time response on letters, telephone calls or fax
2.In-time supply the quotation and mold designs
3.In-time communication on the technical points
4.In-time sending pictures for the mold machining progress and mold finishing schedule
5.In-time mold test and sample delivery
6.In-time mold delivery From Alibaba China Supplier.

FAQ

Q1::Are you a factory or trading company?
A1:We are a factory, Henghui has 7,000 square meters of manufacturing plants
and R&D bases
Q2:Where is your factory located? How can I visit there?
A2:Our factory is located in Hailong Village, Baishiyi Town, Jiulongpo District,
Chongqing City, China.
All our clients, from home or abroad, are warmly welcome to visit us at anytime!
Q3:What is the material of your products?
A3:The materials are DC53,SKD11,D2,SKH-9,SKH-51, or as our clients’ requirements.
Q4: The maximum press your factory have available ?
A4: Our factory has 30T,60T,160T punching machines
Q5::How does your factory do regarding quality control?
A5: Quality is priority. Henghui people always attach great
importance to quality controlling from the very beginning to
the very end. All the molds, the QC measure with three-D
measuring equipments regularly.
