Product introduction
|

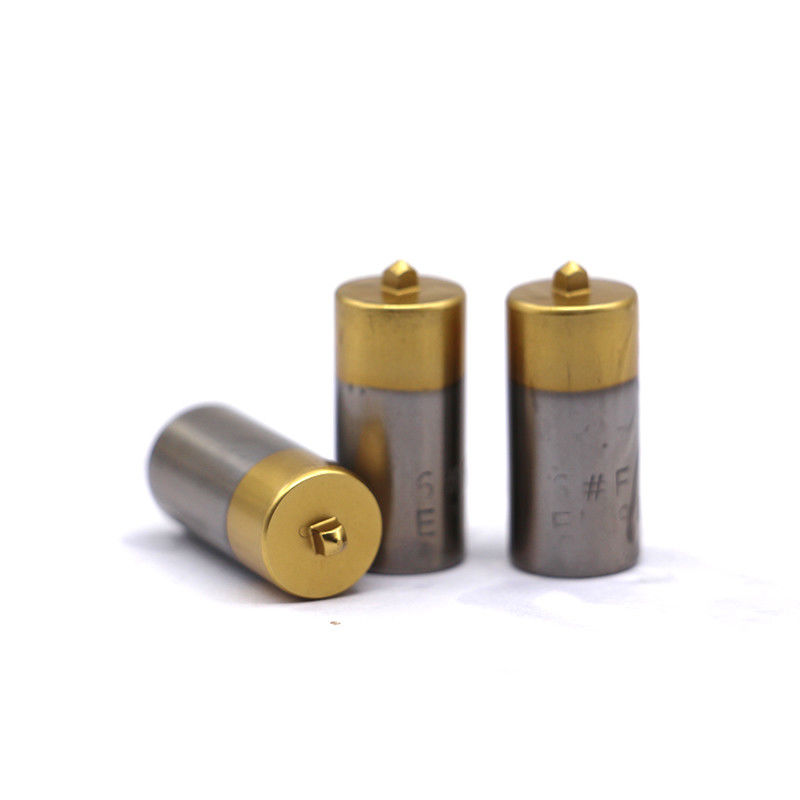

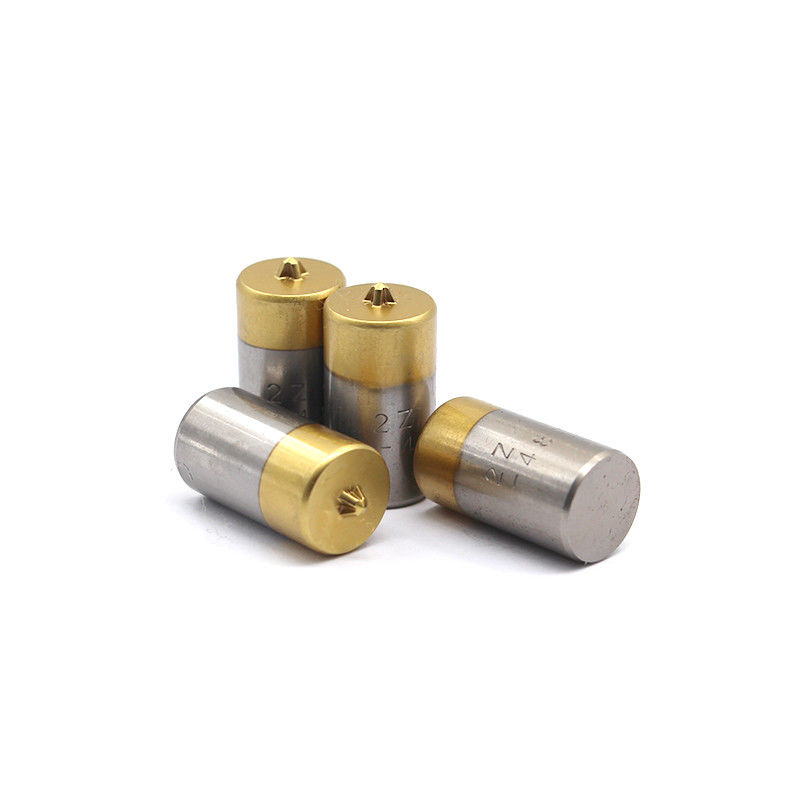

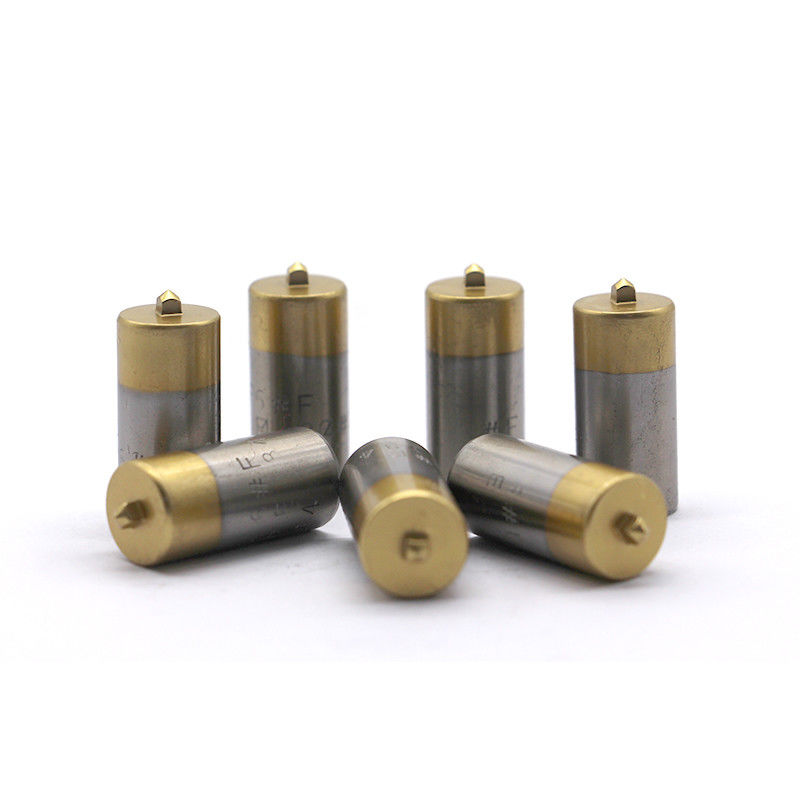

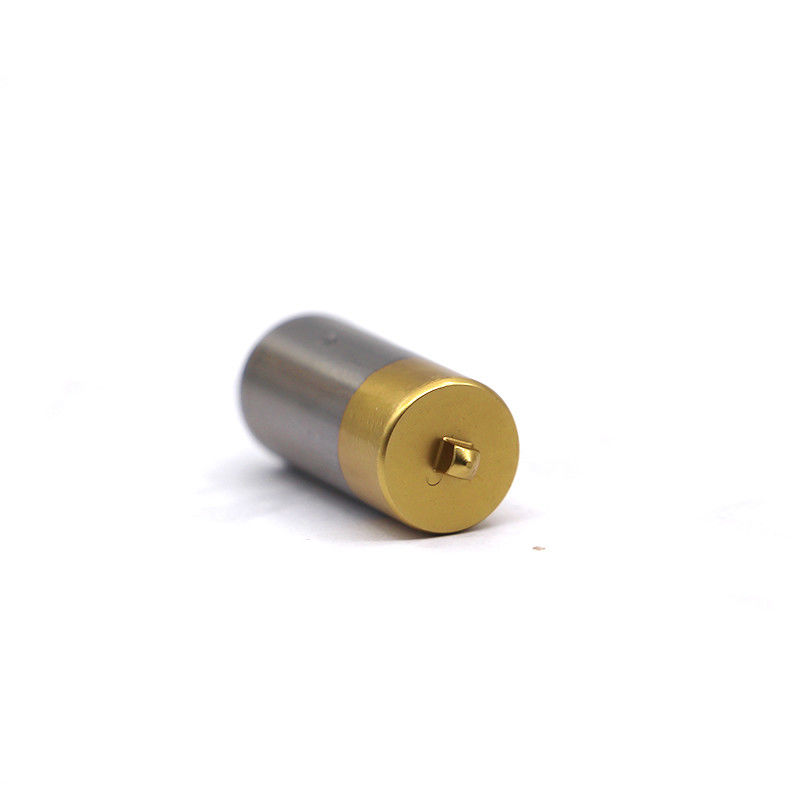

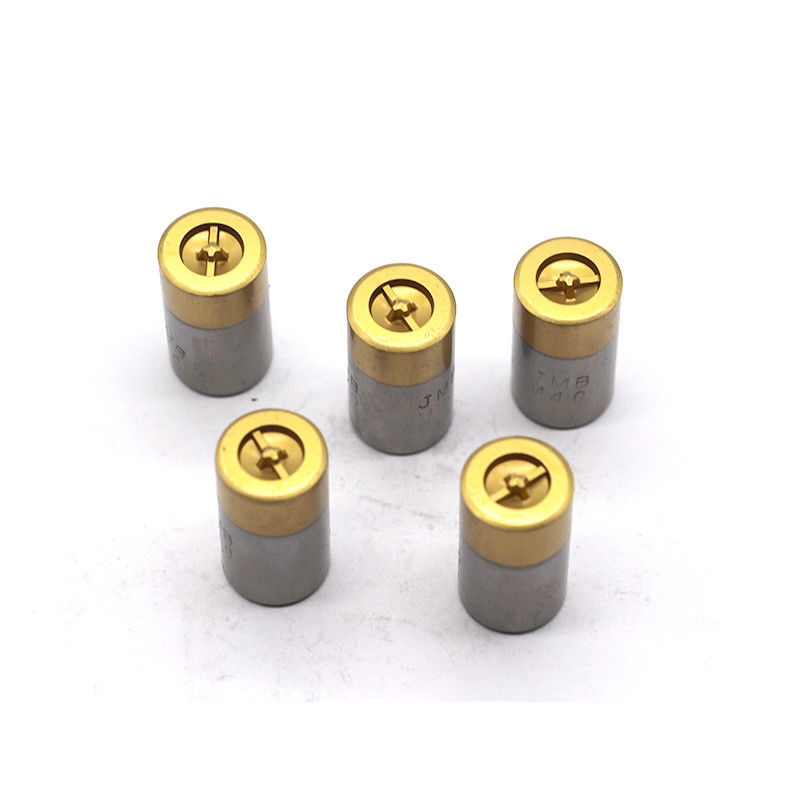

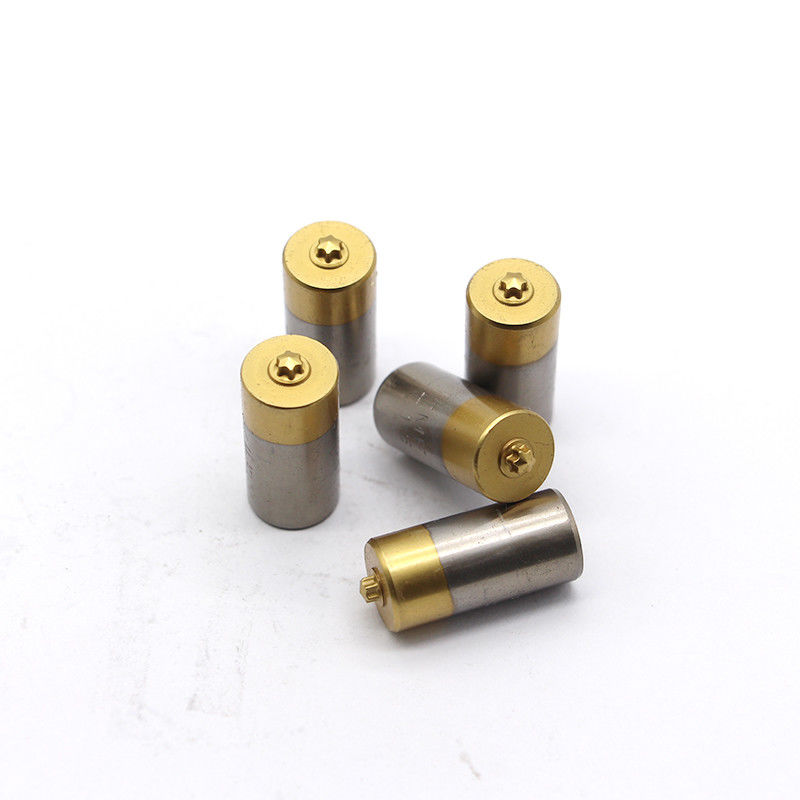

Screw header punch
|
|
|
Application
|
Machine thread , Tapping thread , Wooden thread , Dry wall Thread...
|
|
Material
|
CR12,CR12MOV,asp23,skd11,skd51,skd61
|
|
Dimension
|
D:12mm,14mm,18mm,23mm,25mm,30mm etc.
L:25mm,30mm etc.
OEM
|
|
Standard
|
JIS,DIN,ANSI,ISO,BS,GB, SPECIAL
|
|
Hardness
|
M2:61°-63° & M42: 64°-66°
|
|
Driver Type
|
PH(+), POZI(*), SLOT(-), PH/SLOT(+-), SUQARE, HEX, 6-LOBE...
|
|
Coating
|
Plain;Yellow coating;Black coating
|
|
Average performance
|
Plain:30000-40000pcs(low steel) / 5000-6000pcs(stainless steel)
TiN coating :80000-90000pcs(low steel) / 30000-40000(stainless steel)
TiALN coating: 180000pcs(low steel) / 70000pcs(stainless steel)
|
|
Unit weight
|
12*25=25g , 14*25=30g , 18*25=50g , 23*25=80g
|
|
MOQ
|
30 pieces/Size
|
Aftersales Service:
Pls open it and check all the items ASAS when you receive the packages,if there is any damage or mistake, tell me pls , we will exchange or replace for you within two weeks
(don’t let it more than two weeks ).
Customer satisfaction is the most important to us . if you have any problem ,
pls feel free to contact with us !
Please specify the details of header punches as follows when you inquire or order:
1. The material of header punches you need or the material of screw you used.
2. The specification of standard you use, for examples: JIS, ANSI or DIN.
3. Screw Application: Machine Screw , Tapping Screw , Wood Screw or any others .
4. Head Style: Flat head , Pan head , Truss head , Binding head or any others .
5. Nominal Size: JIS-M20, M23; ANSI-#4, #8; DIN-M30, M35;
6. Recess Driver: Phillips , Slot, Phillips and Slot Combination, Pozi ect .
7. Dimension : 12x25, 14x25, 18x25, 23x25;
8. Coated : Plian , TIN Coated , TILAN Coated ;
