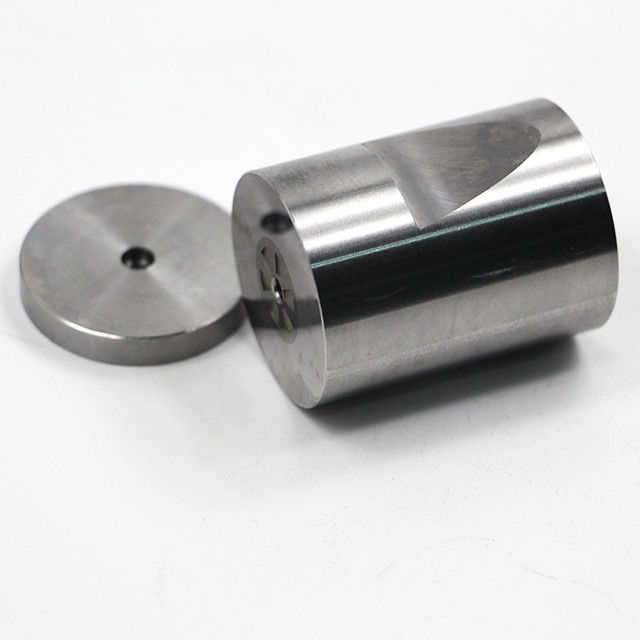

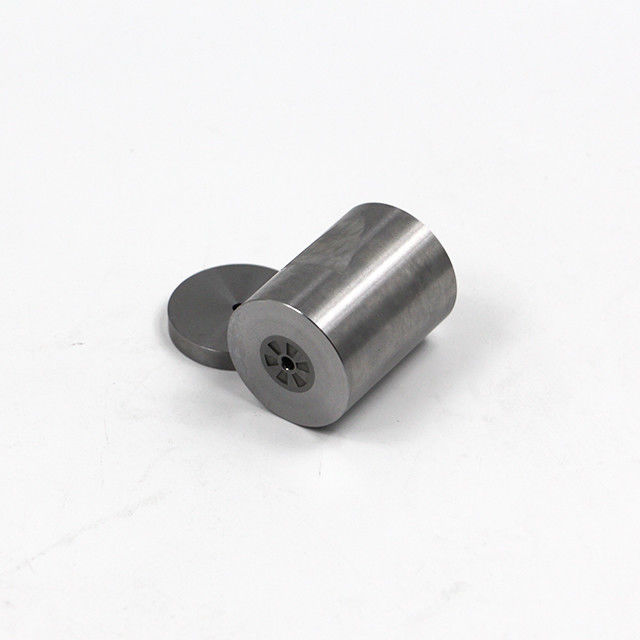

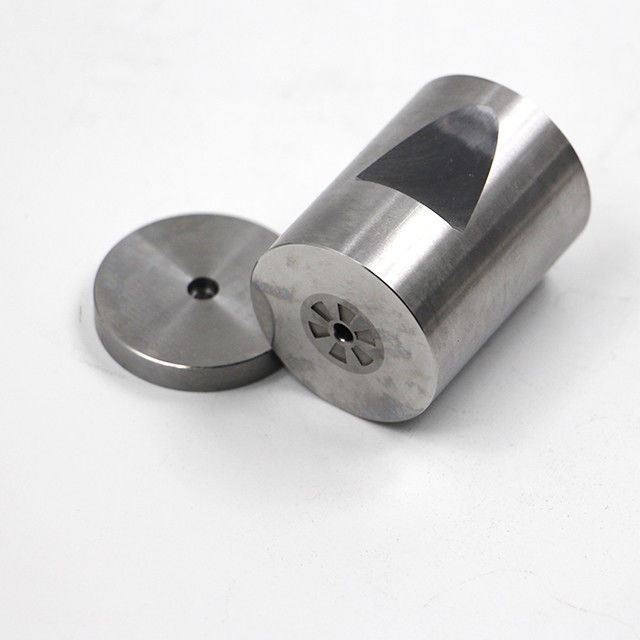

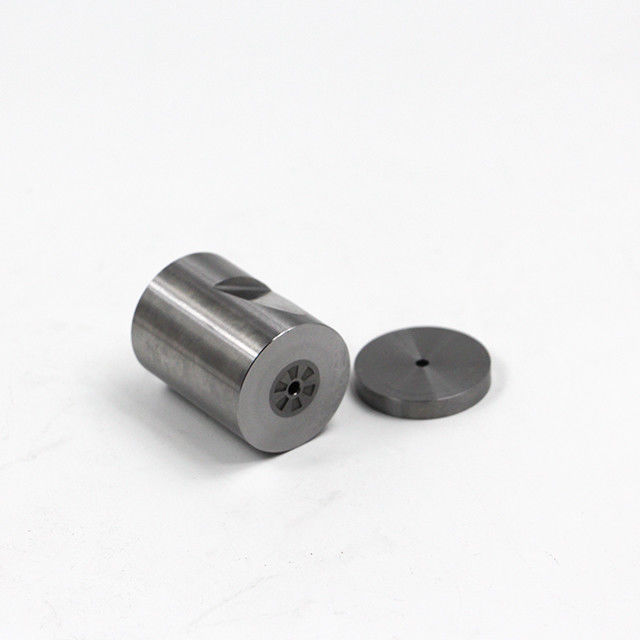

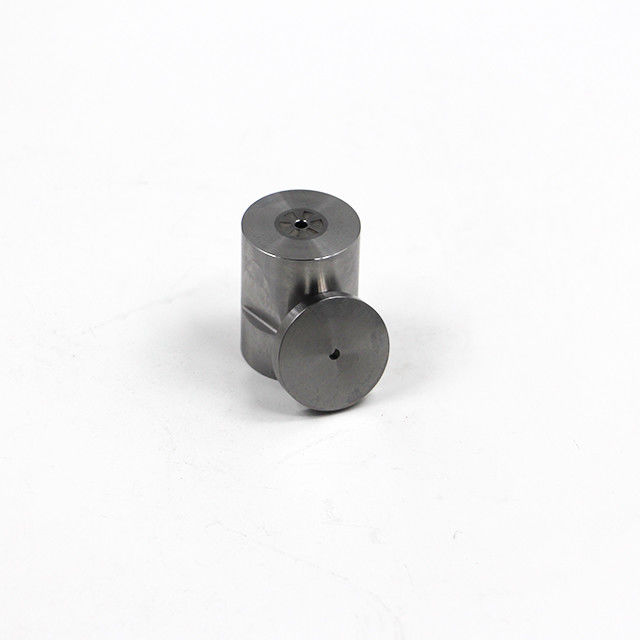

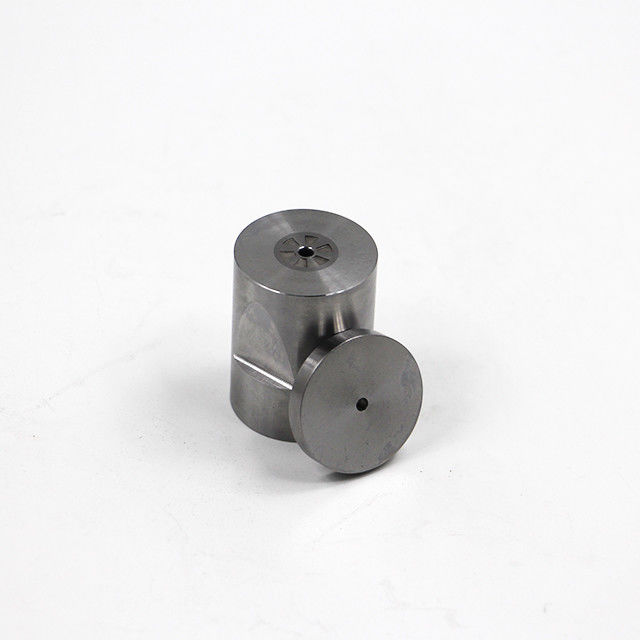

Polishing Screw Molding Die , Tungsten Carbide Punch And Die

Polishing Screw Molding Die

Tungsten Carbide Punch And Die

Place of Origin:

Chongqing, China

Brand Name:

Henghui

Model Number:

OEM

Request A Quote

Polishing Screw Molding Die , Tungsten Carbide Punch And Die

Product Details

Name:

Hex Dies

Shaping Mode:

Forging Mould, Punching Mold

Product Material:

Steel

Product:

Fastener Die

Material:

Tungsten Carbide

Specification:

D X L X SW

Surface:

Grinding

Machines:

Nut Cold Former, Forging Press, Bench Lathe, CNC Lathe, Headers Etc.

Toolings:

Trimming Dies, 2nd Punch, KO Pins, Forging Mould

Product Name:

Punch Die

Port:

Chongqing, Shanghai, Shenzhen Or As Client's Need

Highlight:

Polishing Screw Molding Die

Tungsten Carbide Punch And Die

Payment & Shipping Terms

Price

$10.00 - $50.00/sets

Packaging Details

plastic bags, cartons and plywood pallet or according to customers' requirements

Supply Ability

5000 Piece/Pieces per Month punch die

High Precision Polishing Screw Dies , Tungsten Carbide Punch Die

Get Best Price

Tungsten Carbide Screw Dies Customized Size For Punch Case Second Punch Bushing

Get Best Price

Carbide Punch Die Mould Wear Resisting HSS Dies For Screw And Bolts

Get Best Price

Customized Mold Tungsten Carbide Segmented Dies High Strength

Get Best Price

Contact Now

Product Description

Polishing Screw Molding Die Hot Sales Tungsten Carbide Punch Die

Products Description

Insert Material:

We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
		KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
		KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
		KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
		KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
		ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
		EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
		VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
		VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
		EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:

Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:

TiN / TiAlN

Process

Company Profile

About Us

Chongqing Henghui Precision Mold Co., Ltd located in Chongqing, which is specialized in developing, production and sales of various tungsten carbide dies manufacturer. All our products are made from high-precision manufacturing equipment and testing equipment. Using advanced processing technology to ensure products’ precision. At the same time, we also have technical engineers with many years of professional design experience, a group of experienced technical and quality inspection personnel, implemented the ISO 9001 quality management system and ERP system management.

Our products and services cover the Asian market in China and are exported to Europe, America and Southeast Asia. Our carbide die have a reputation for precision, efficiency, stability and durability. We have a customer service experienced sales staff to provide customers with more attentive service and create more value.

Exhibition

Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.

Packing and Delivering

Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.

Inspection equipment

Our Advantages

Advantages

1.High quality
2.Reasonable price
3.On time delivery
4.Good After-sale service
5.Strict quality control

We will offer you

1.In-time response on letters, telephone calls or fax
2.In-time supply the quotation and mold designs
3.In-time communication on the technical points
4.In-time sending pictures for the mold machining progress and mold finishing
schedule
5.In-time mold test and sample delivery
6.In-time mold delivery From Alibaba China Supplier.

FAQ

Q1::Are you a factory or trading company?
A1:We are a factory, Henghui has 7,000 square meters of manufacturing plants
and R&D bases
Q2:Where is your factory located? How can I visit there?
A2:Our factory is located in Hailong Village, Baishiyi Town, Jiulongpo District,
Chongqing City, China.
All our clients, from home or abroad, are warmly welcome to visit us at anytime!
Q3:What is the material of your products?
A3:The materials are DC53,SKD11,D2,SKH-9,SKH-51, or as our clients’ requirements.
Q4: The maximum press your factory have available ?
A4: Our factory has 30T,60T,160T punching machines
Q5::How does your factory do regarding quality control?
A5: Quality is priority. Henghui people always attach great
importance to quality controlling from the very beginning to
the very end. All the molds, the QC measure with three-D
measuring equipments regularly.
