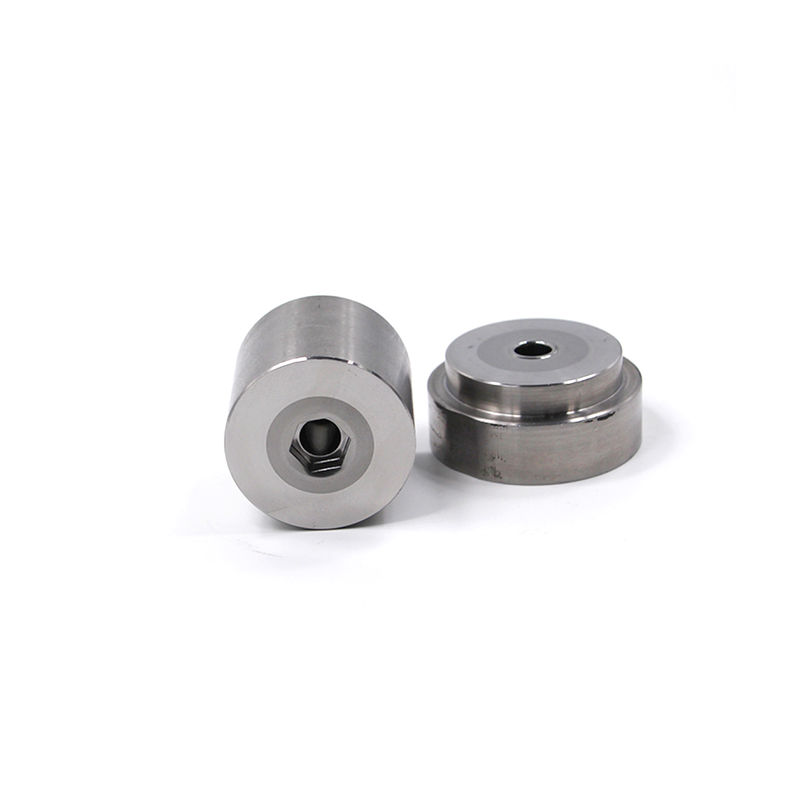

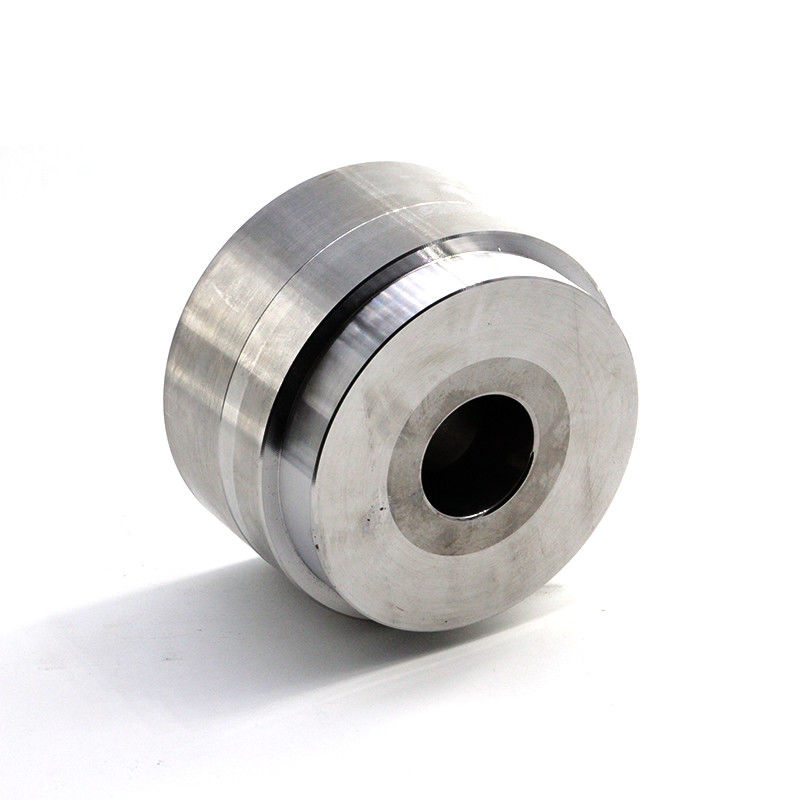

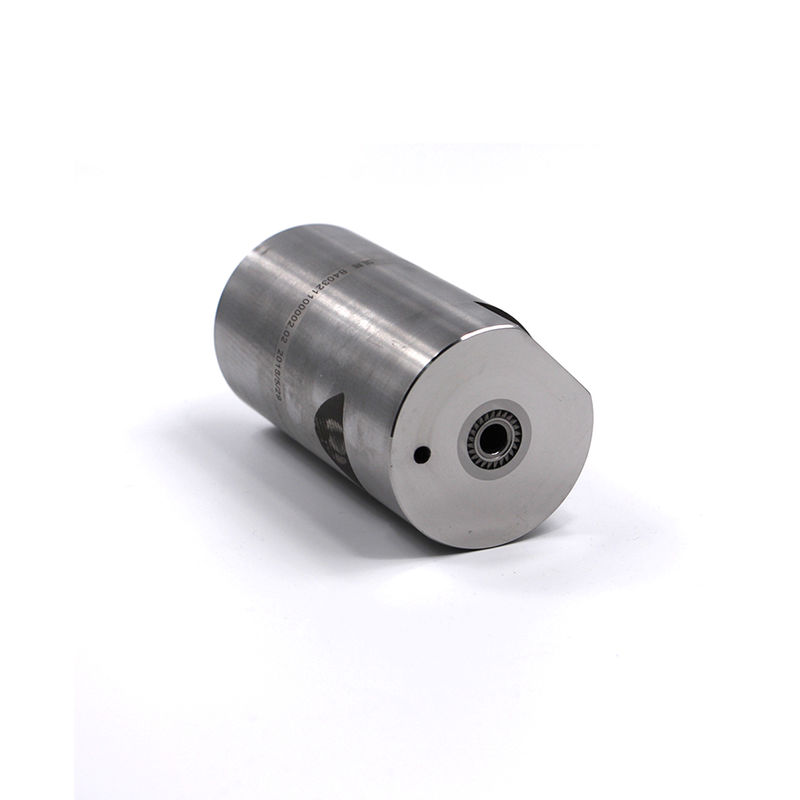

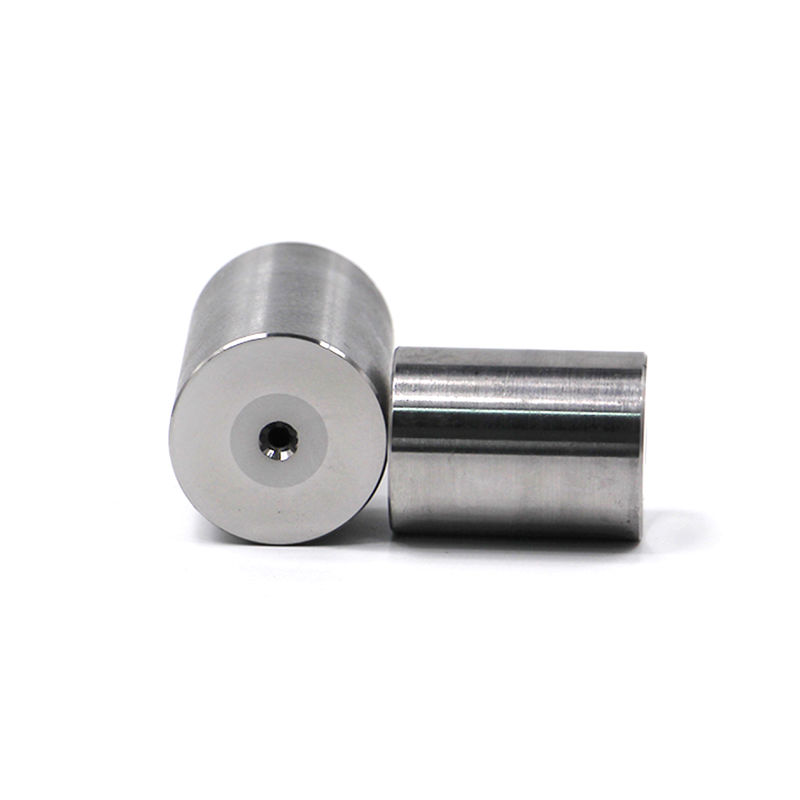

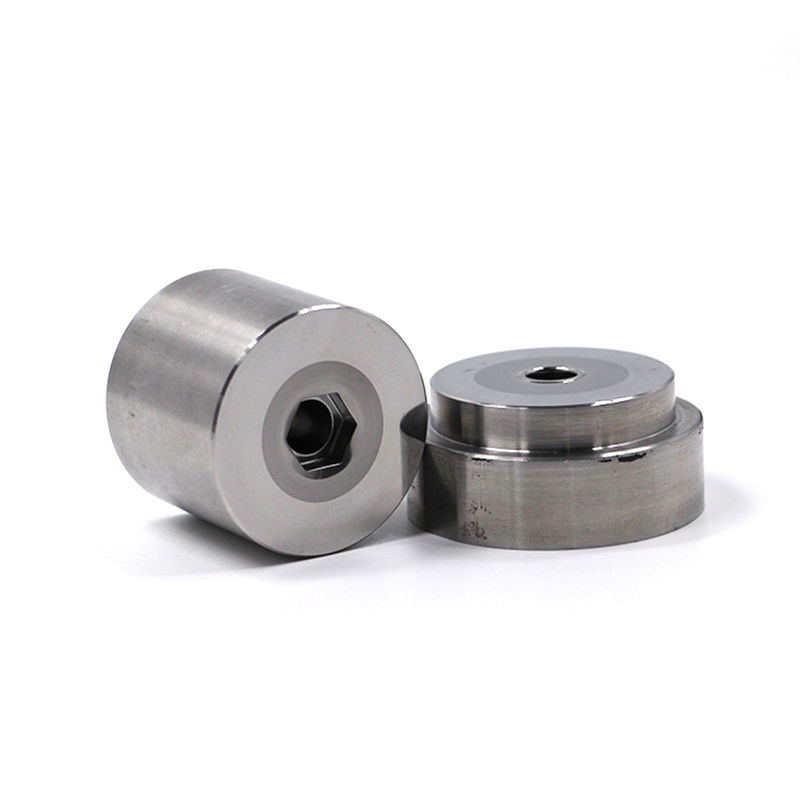

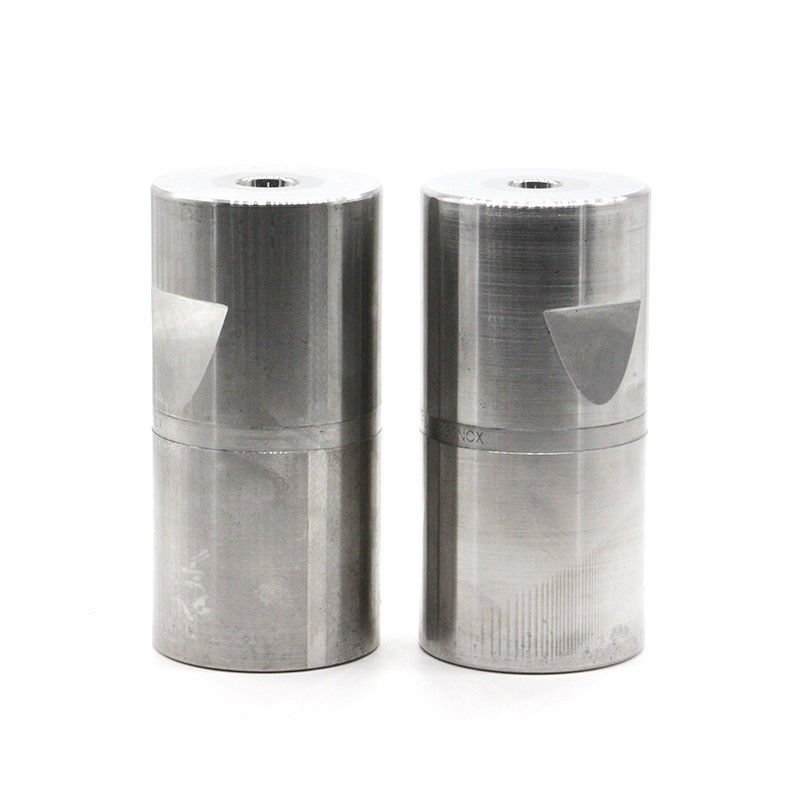

Precision Forging Mould Tungsten Carbide Wire Drawing Dies

Forging Mould Carbide Wire Drawing Dies

Precision Tungsten Carbide Wire Drawing Die

Place of Origin:

Chongqing, China

Brand Name:

Henghui

Model Number:

OEM

Request A Quote

Precision Forging Mould Tungsten Carbide Wire Drawing Dies

Product Details

Shaping Mode:

Forging Mould

Product Material:

Steel

Product:

Punching Die

Product Name:

Punching Die

Material:

Carbide

Design Software:

CAD

Mould Base:

Non-Standard

Surface Treatment:

Polishing

Size:

Customized

Service:

OEM ODM

Precision:

+/-0.01mm

Shapping Mode:

Forging Mould

Standard:

ANSI,DIN,JIS,ISO Etc.

Port:

Shenzhen Shanghai Ningbo Chongqing

Name:

Hex Dies

Highlight:

Forging Mould Carbide Wire Drawing Dies

Precision Tungsten Carbide Wire Drawing Die

Payment & Shipping Terms

Price

$55.00 - $78.00/sets

Packaging Details

Carton Box; Export Standard Package, Or As Client's Requirement.

Supply Ability

2000 Set/Sets per Month Punching Die

High Precision Polishing Screw Dies , Tungsten Carbide Punch Die

Get Best Price

Tungsten Carbide Screw Dies Customized Size For Punch Case Second Punch Bushing

Get Best Price

Carbide Punch Die Mould Wear Resisting HSS Dies For Screw And Bolts

Get Best Price

Customized Mold Tungsten Carbide Segmented Dies High Strength

Get Best Price

Contact Now

Product Description

Precision Forging Mould Tungsten Carbide Wire Drawing Dies

Main material: Reasonable choice of carbide material will greatly improve the service life of die

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	application
Medium-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
		KG2	6.5%	2~3	14.90	90.5	320	0.28	Drawing die
		KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
		KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
		KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse -Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
		ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
		EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
		VA80	20%	3~6	13.58	84.0	280	0.85	impact resistance
		VA90	22%	6~9	13.39	82.5	240	0.90	impact resistance
