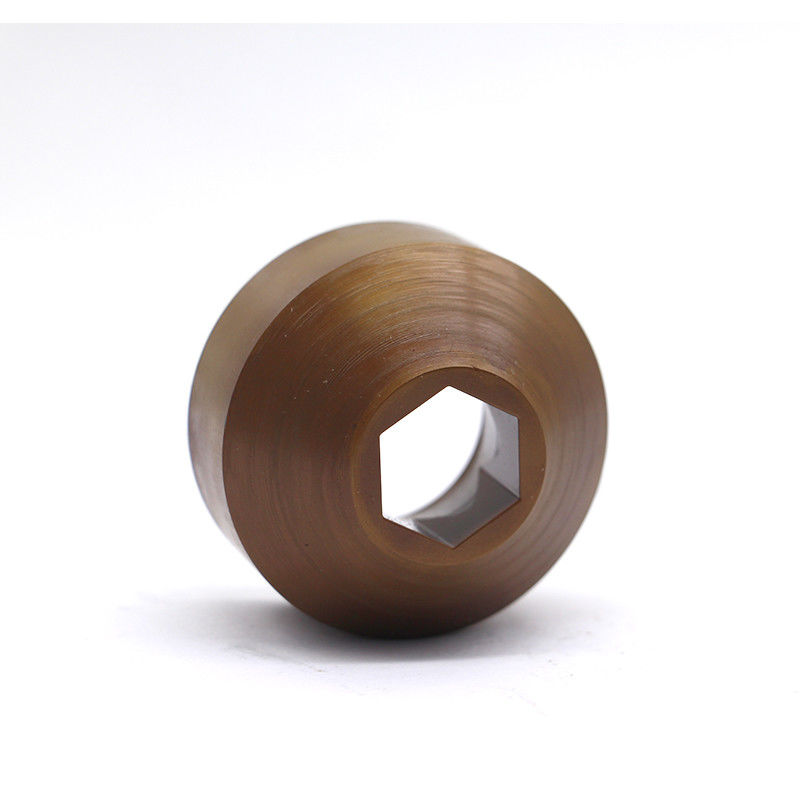

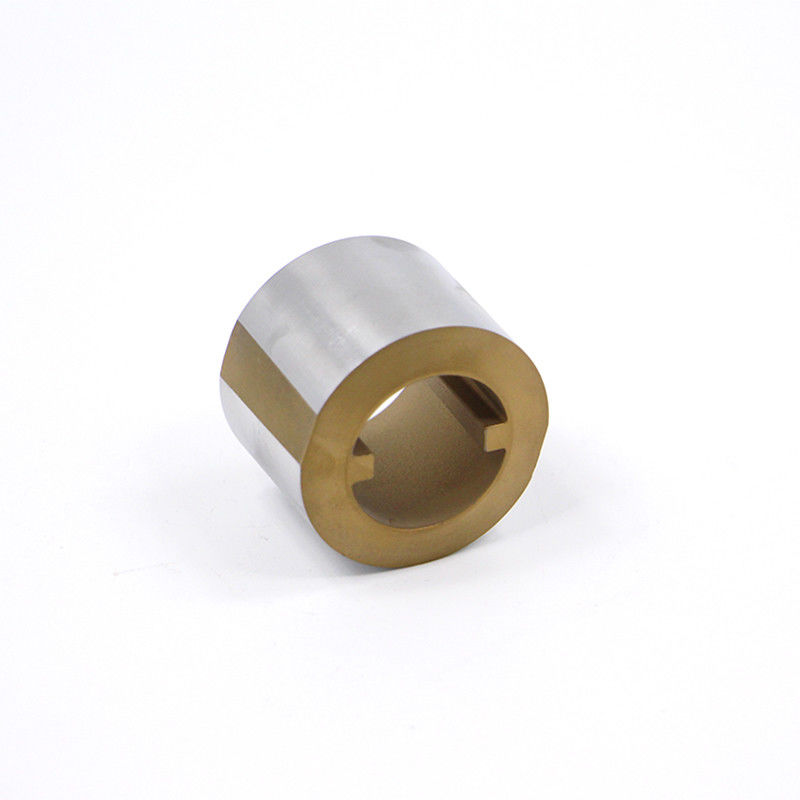

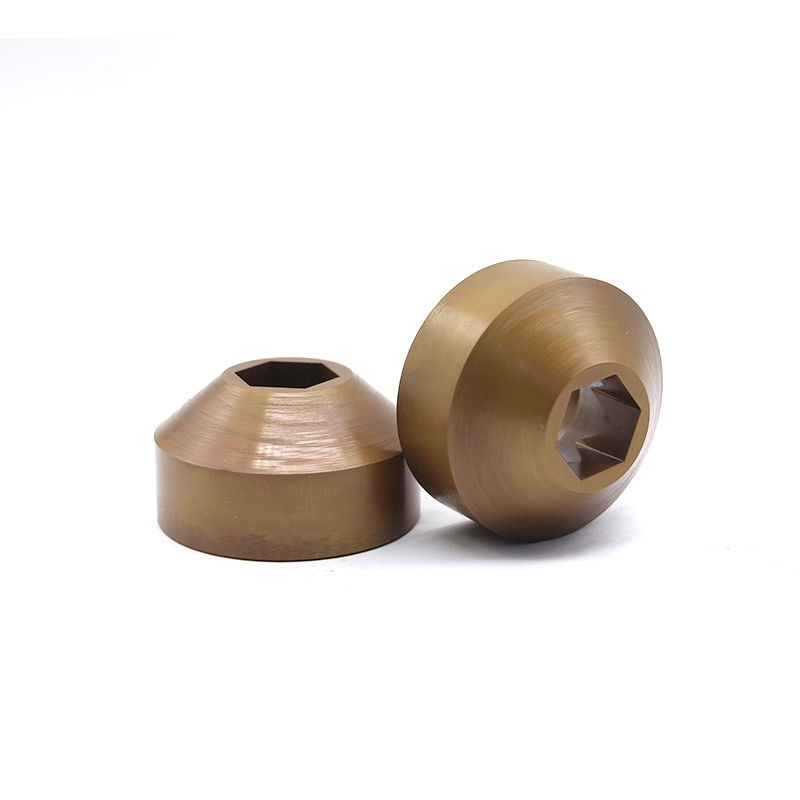

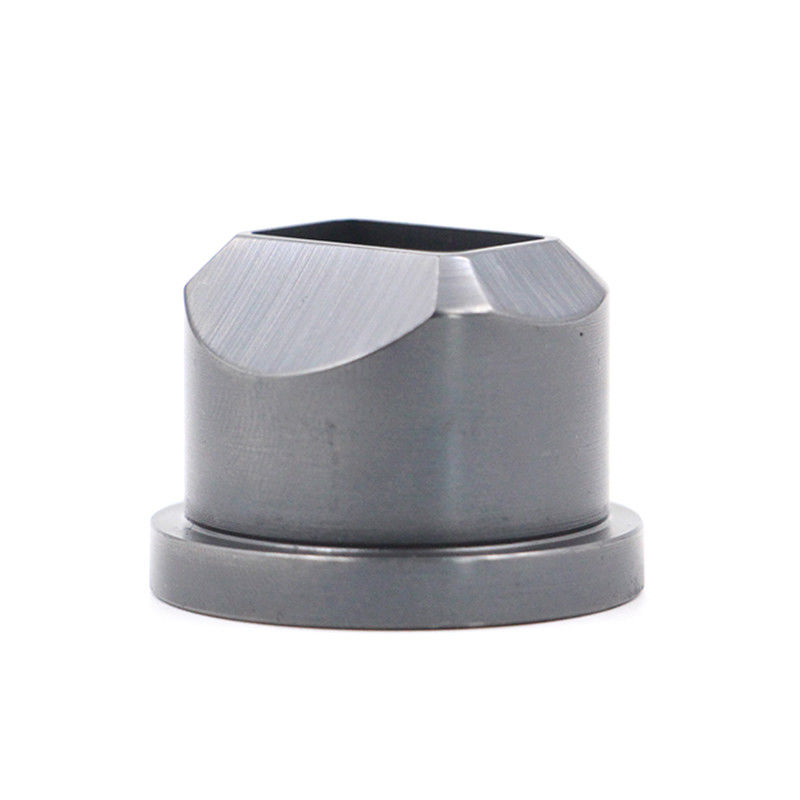

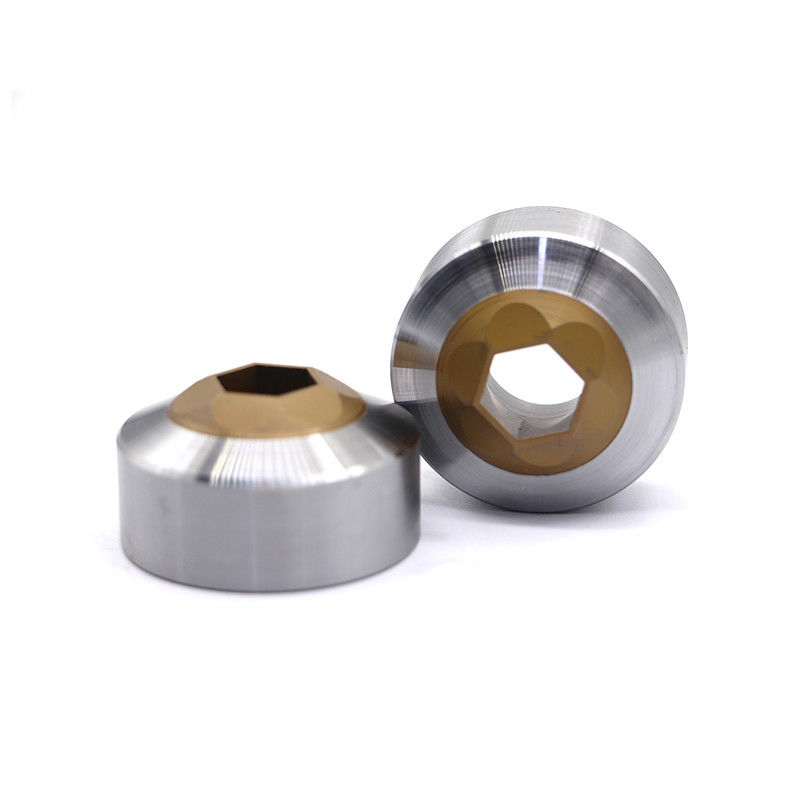

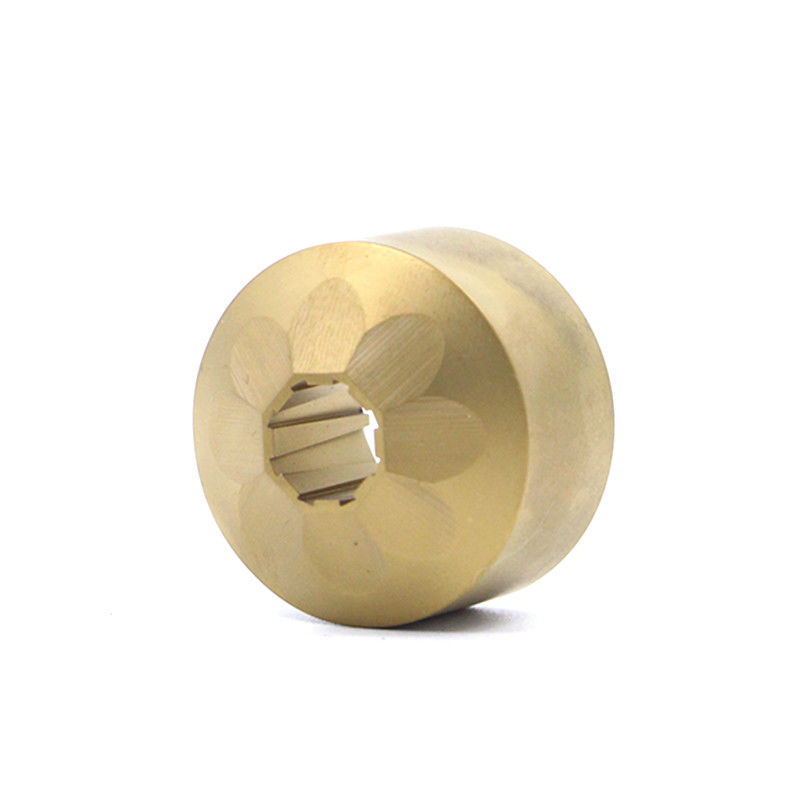

Name: Tin Hexagon Bolt Head Trimming Dies Surface Polishing CAD Design
Brand: Dongguan Fanchi Mold Technology Co., Ltd
SKU: Customized
Price: 37.00 USD
Availability: InStock

Home > products > Trimming Dies >

Tin Hexagon Bolt Head Trimming Dies Surface Polishing CAD Design

Tin Hexagon Bolt Head

Trimming Dies Surface Polishing

Trimming Dies CAD Design

Place of Origin:

Chongqing, China

Brand Name:

Henghui

Certification:

ISO9001:2015

Model Number:

Customized

Request A Quote

Tin Hexagon Bolt Head Trimming Dies Surface Polishing CAD Design

Product Details

Name:

Trimming Dies

Shaping Mode:

Forging Mould

Product Material:

Steel

Product:

Fastener

Product Name:

Cutting Trimming Die Coated With TiN For Various Screws

Material:

M2/M35/M42/HSS

Mould Material:

Steel

Size:

Customized Size

Surface Treatment:

Polishing

Design Software:

CAD

Service:

OEM ODM

Brand Name:

Henghui

Application:

Hardware

Port:

Shanghai, Chongqing, Shenzhen

Highlight:

Tin Hexagon Bolt Head

Trimming Dies Surface Polishing

Trimming Dies CAD Design

Payment & Shipping Terms

Price

$30.00 - $45.00/pieces

Packaging Details

Carton box or wooden box.

Supply Ability

100000 Piece/Pieces per Month

Standard Tin Trimming Die Round / Rectangle Shape Customized Surface Texture

Get Best Price

M2 M35 M42 Cutting And Trimming Dies Screw Mold For Industry

Get Best Price

Hexagonal Cutting And Trimming Dies CAD Design Size Custimized

Get Best Price

Forging Mold Tin Trimming Die Customized Corrosion Resistant

Get Best Price

Contact Now

Product Description

Tin Hexagon Bolt Head Trimming Dies And Best Quality Mould In Our Company

Products Description

Insert Material:

We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
		KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
		KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
		KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
		KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
		ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
		EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
		VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
		VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
		EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:

Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:

TiN / TiAlN

Process

Products Description

Our advantage:

Advice on carbide and steel grades for different applications.
Perfect tangent radius.
Mechanical Processing surfaces when it is geometrically possible.
Large number of shapes with very high geometric complexity.
Coating, the most suitable for the materials to be cut.
Mirror polishing before and after coating.
± 0.005 mm tolerances.
Competitive prices.

Material:

Our main case material : M2, M42

M42(SKH59)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	1.06	0.3	0.31	0.018	0.002	3.74	9.29	1.1	1.34
	Cu	Ni	Co
	0.07	0.29	7.97

M2(H9)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.85	0.33	0.34	0.027	0.005	4.12	4.73	1.78	5.74
	Cu	Ni
	0.12	0.24

Surface Treatment:

PVC

Factory

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Exhibition

Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.

Packing and Delivering

Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.

Inspection equipment

FAQ

Q1: How can I get a quotation from your company?

A1: Contact us.In order to quote you as soon as possible, we need the following information: drawings, Material , Quantity ,Surface treatment.

Q2: What is our lead time?

A2: This will be based on the number of products you customize and the country you are in.
