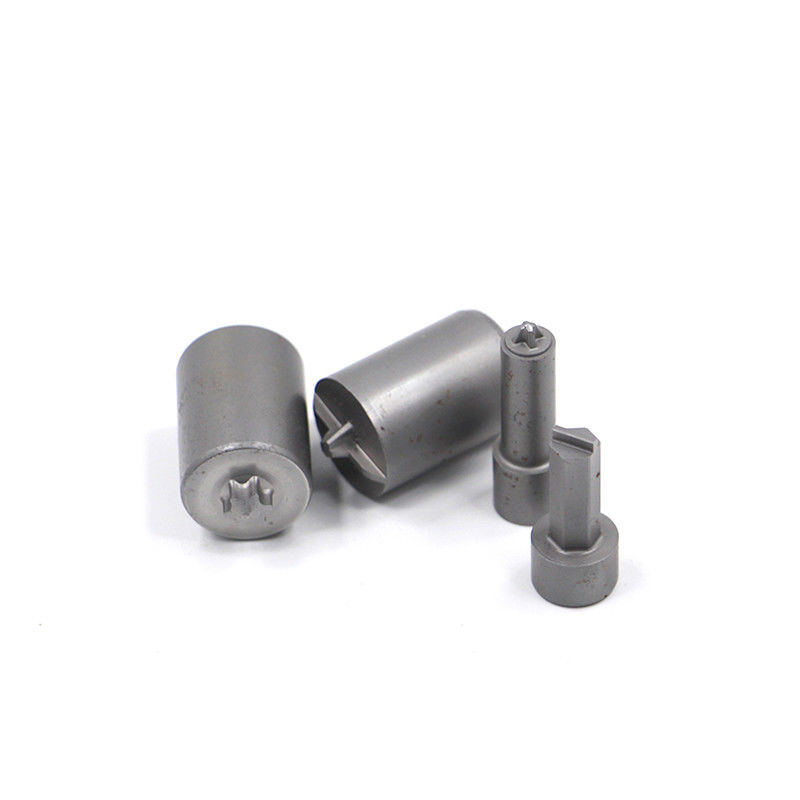

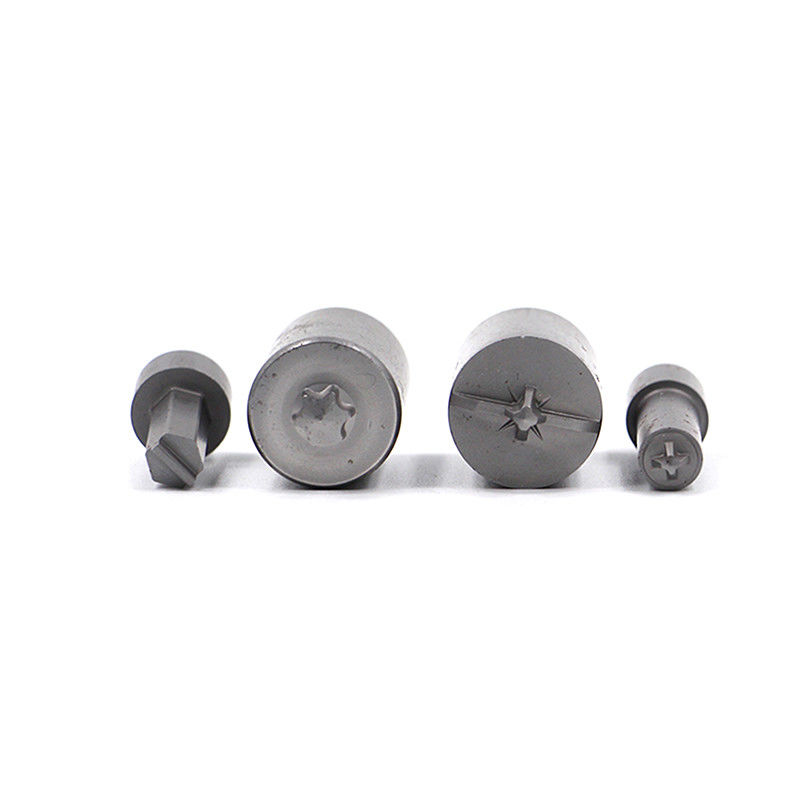

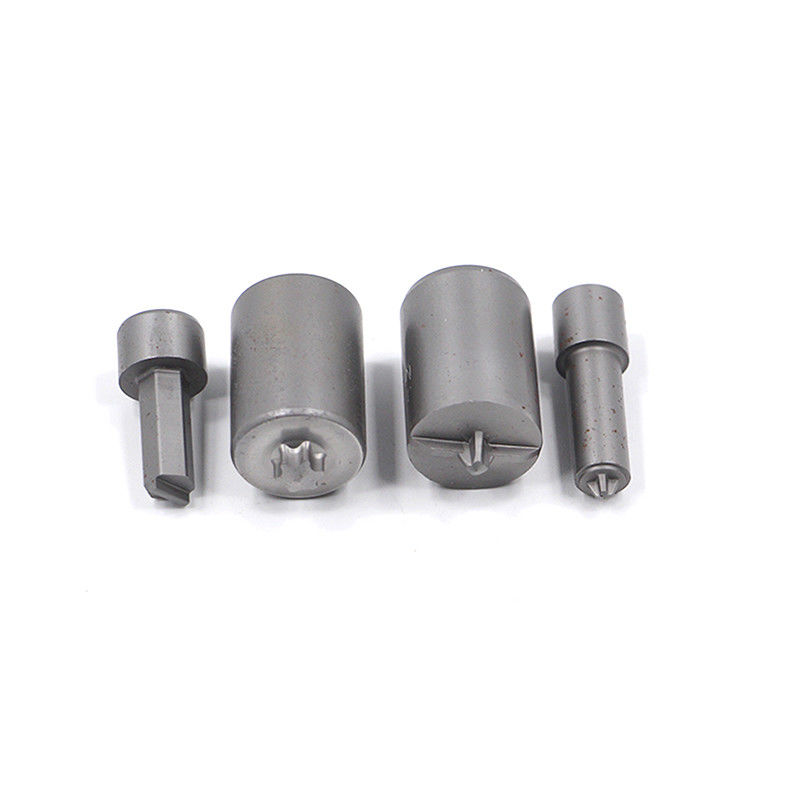

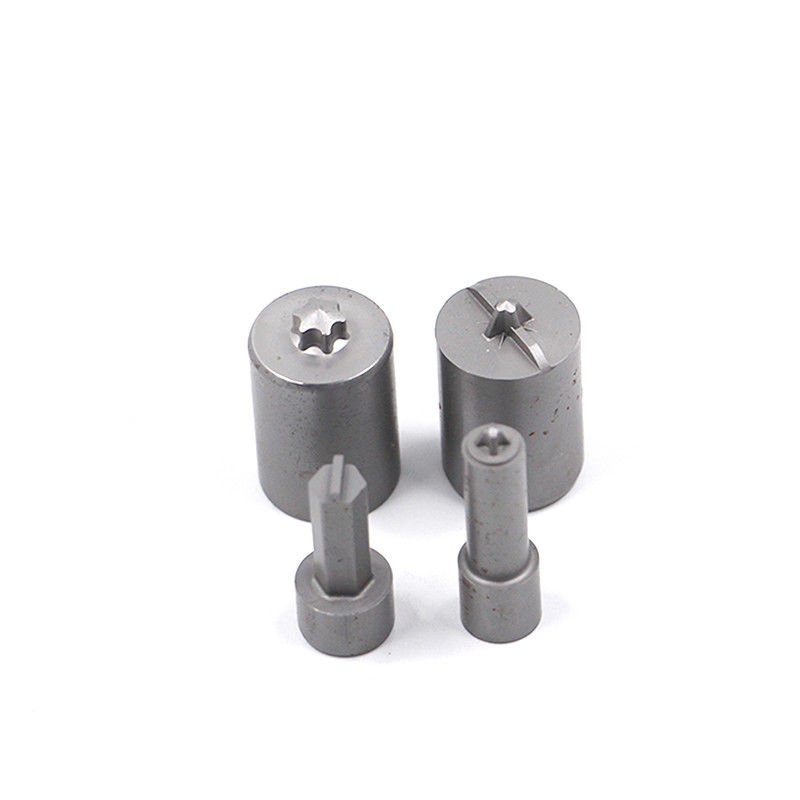

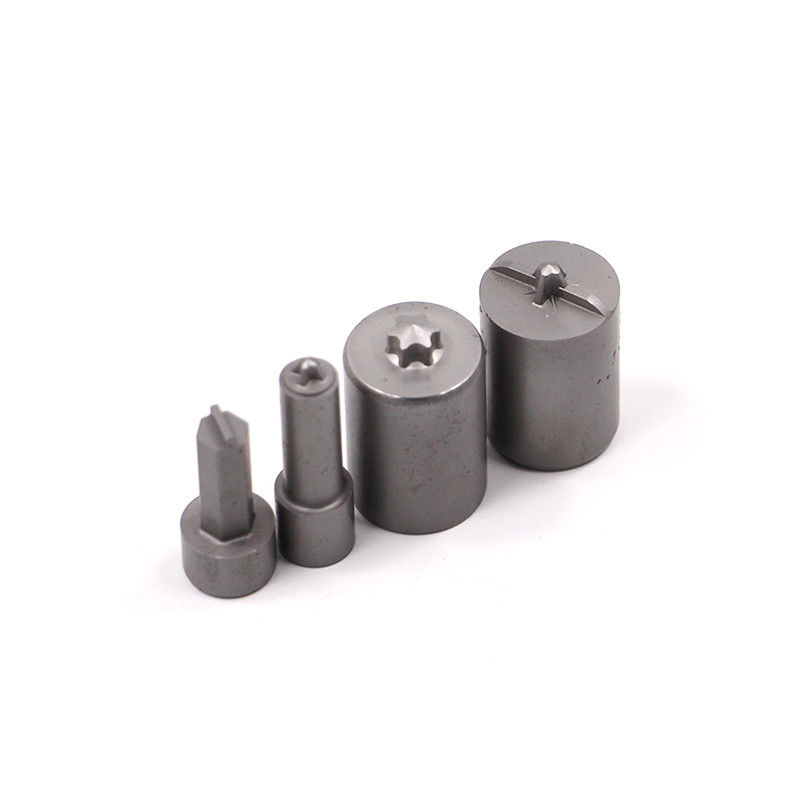

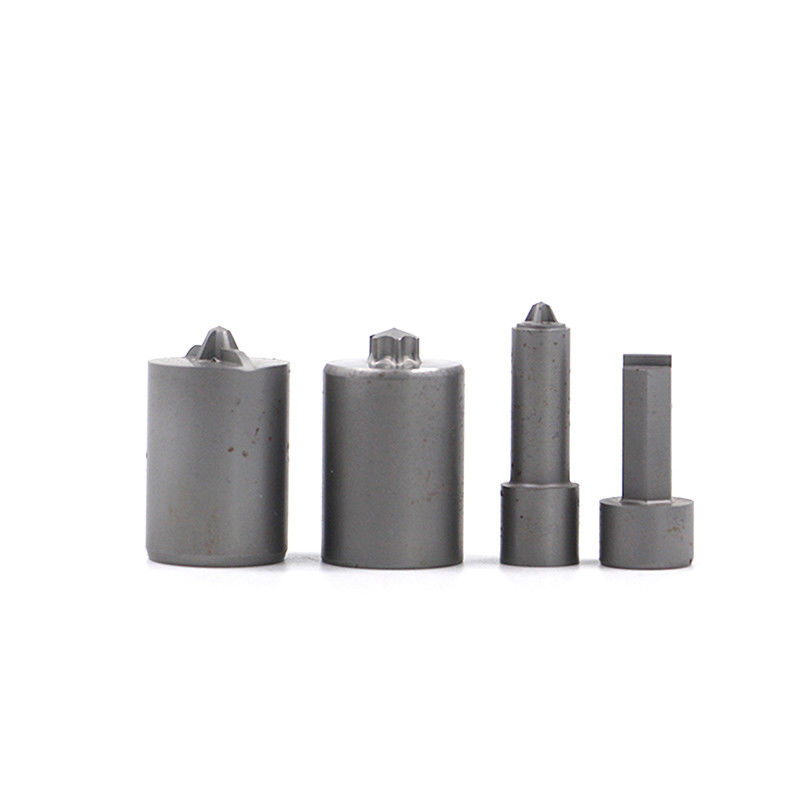

Name: Factory manufacturing punch with TIN ,TILAN coating-black coat
Brand: Dongguan Fanchi Mold Technology Co., Ltd
SKU: customized
Price: 1.50 USD
Availability: InStock

Home > products > Second Punch >

Factory manufacturing punch with TIN ,TILAN coating-black coat

tilan coating header punch

tilan coating second punch

steel header punch

Place of Origin:

Chongqing, China

Brand Name:

Model Number:

customized

Request A Quote

Factory manufacturing punch with TIN ,TILAN coating-black coat

Product Details

Shaping Mode:

Extrusion Mould

Product Material:

Steel

Product:

Vehicle Mould

Product Name:

Second Punch

Material:

Steel

Color:

Yellow And Silver

Size:

12x25mm 14x25mm 18x25mm 23x25mm

Type:

CNC Process

Keyword:

Second Punch, Forging Die

Process:

CNC

Surface Treatment:

Polishing

Design Software:

CAD

Feature:

Wear-resisting

Port:

Chongqing

Name:

Second Punch

Highlight:

tilan coating header punch

tilan coating second punch

steel header punch

Payment & Shipping Terms

Minimum Order Quantity

10 pieces

Price

$1.50 - $2.30/pieces

Packaging Details

Carton, Wooden box; export standard package,or as client's requirement

Supply Ability

3000 Piece/Pieces per Month

Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch

Get Best Price

Henghui High Level Precision Customised Screw Second Punches Header

Get Best Price

Henghui Punching Mold Shaping Mode JMR M6.0 Screw Header Second Punches Surface Coating TiN

Get Best Price

2023 customized M2+TIN Phillips Header Punch Second Punch for Screw

Get Best Price

Contact Now

Product Description

Products Description

Material:

M42(H59)＞M35(H55)＞M2(H9)

H9(M2)		H9(M2)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.85	0.33	0.34	0.027	0.005	4.12	4.73	1.78	5.74
	Cu	Ni
	0.12	0.24

M42(SKH59)		H9(M2)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	1.06	0.3	0.31	0.018	0.002	3.74	9.29	1.1	1.34
	Cu	Ni	Co
	0.07	0.29	7.97

Header punch standard:

JIS, ANSI, DIN, ISO, BS, GB, and NON-STANDARD .
The common head style:
Flat head, pan head , oval head , binding head , round head, truss head, button head, pf head, cheese head, fillister head and so on .
The common driver:
Phillips , Phillips and slot combination, slotted, hexagon, six-lobe (torx), six-lobe tamper , six-lobe/slot , pozidriv , square,
square/slot , Phillips/square, triangle and so on .
