Name: Tin Second Punch Precision M42 Header Punch Customized Size
Brand: Dongguan Fanchi Mold Technology Co., Ltd
SKU: Customized
Price: 3.00 USD
Availability: InStock

Home > products > Second Punch >

Tin Second Punch Precision M42 Header Punch Customized Size

Tin Second Punch

M42 Header Punch

Header Punch Customized Size

Place of Origin:

Chongqing, China

Brand Name:

Henghui

Model Number:

Customized

Request A Quote

Product Details

Shaping Mode:

Die Casting

Product Material:

Steel

Product:

Vehicle Mould

Product Name:

Purple TiN Coating Second Punch

Material:

Steel

Application:

Hardware

Design Software:

CAD

Color:

Purple

Size:

Customized Size

Surface Treatment:

TiCN

Drawing Format:

2D/(PDF/CAD)3D(IGES/STEP)

Highlight:

Tin Second Punch

M42 Header Punch

Header Punch Customized Size

Payment & Shipping Terms

Minimum Order Quantity

30 pieces

Price

$2.00 - $5.00/pieces

Packaging Details

export standard wooden box, or as client's requirement.

Supply Ability

2000 Piece/Pieces per Month

Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch

Get Best Price

Henghui High Level Precision Customised Screw Second Punches Header

Get Best Price

Henghui Punching Mold Shaping Mode JMR M6.0 Screw Header Second Punches Surface Coating TiN

Get Best Price

2023 customized M2+TIN Phillips Header Punch Second Punch for Screw

Get Best Price

Contact Now

Product Description

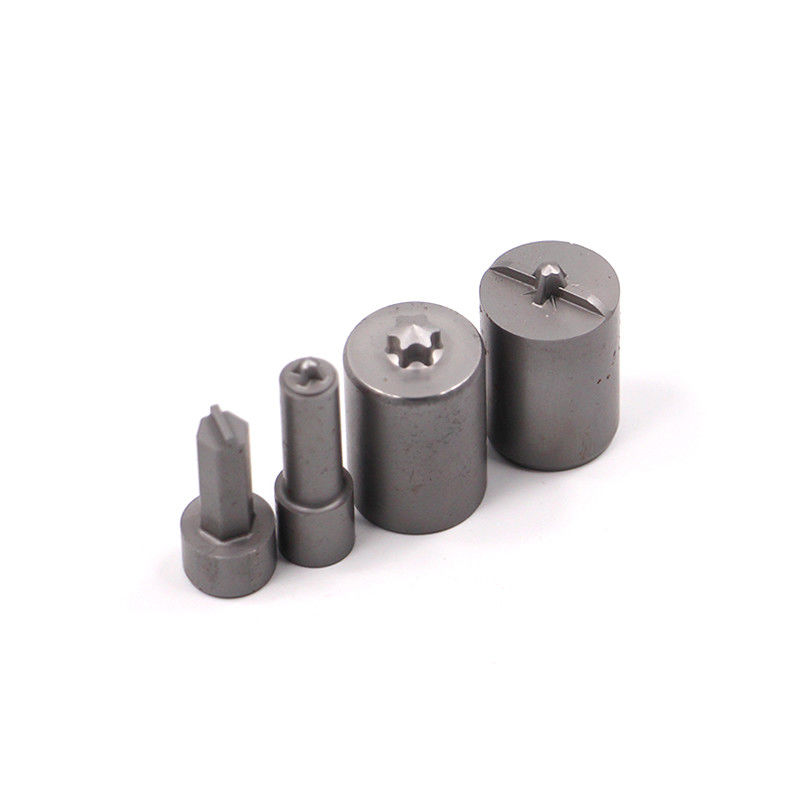

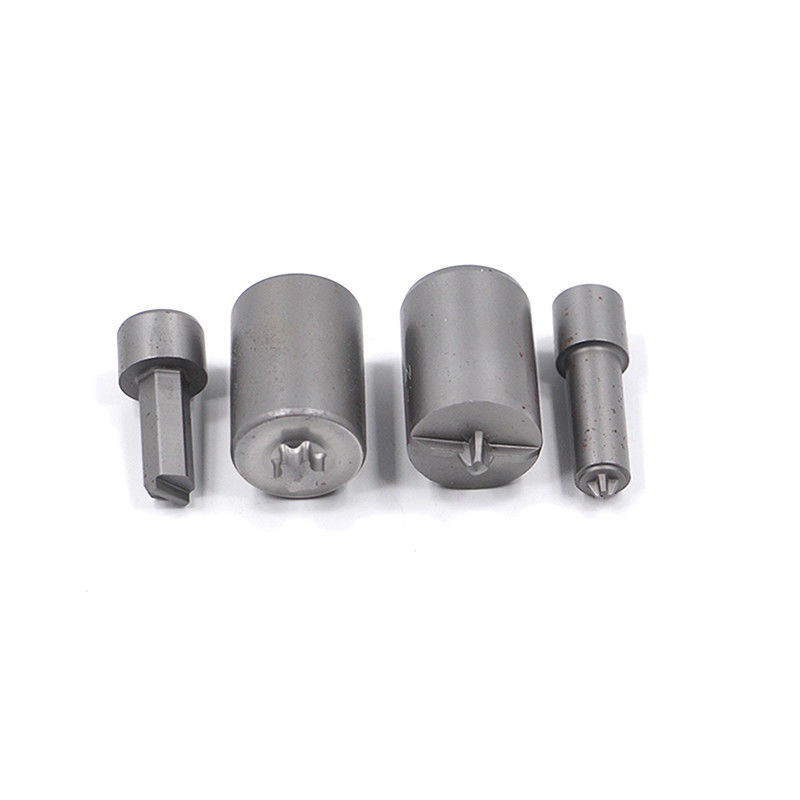

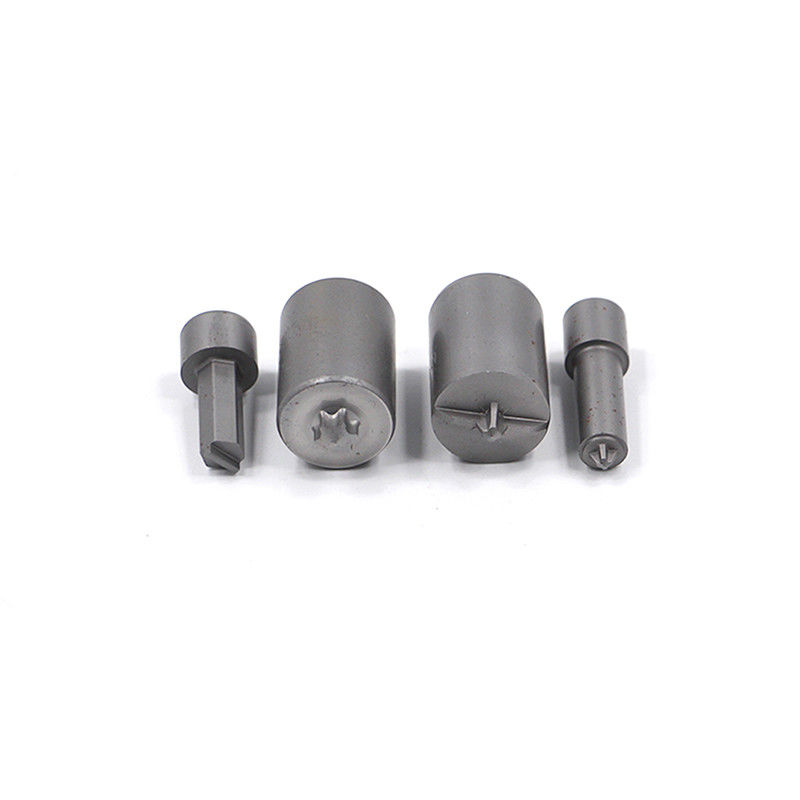

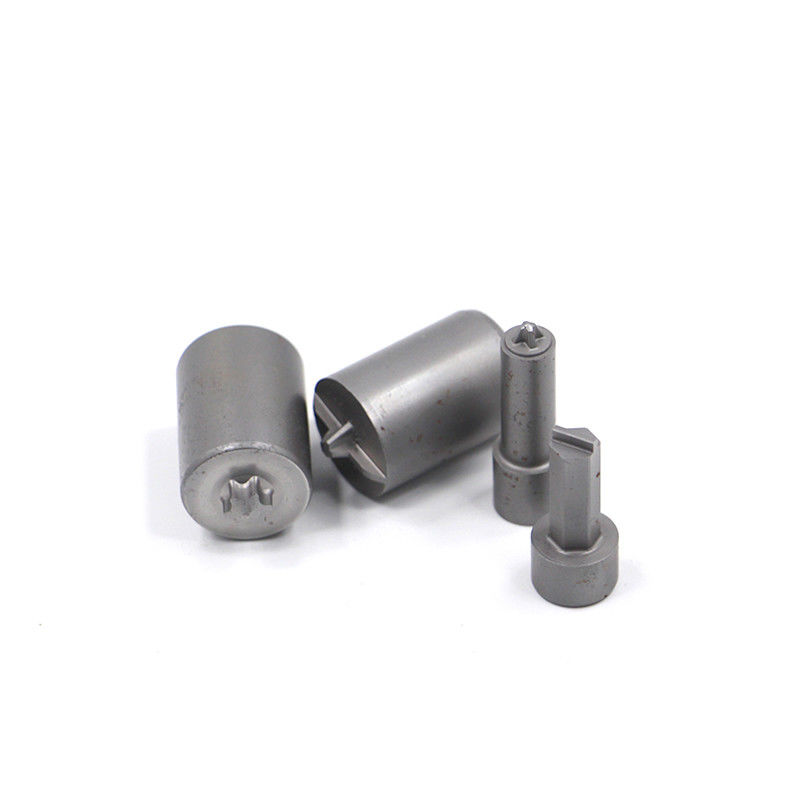

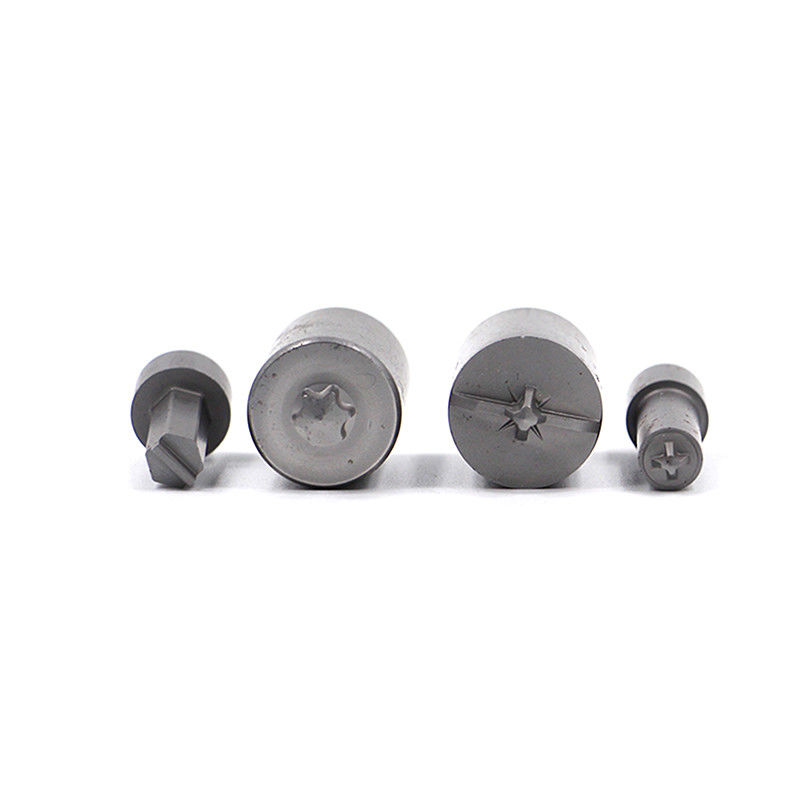

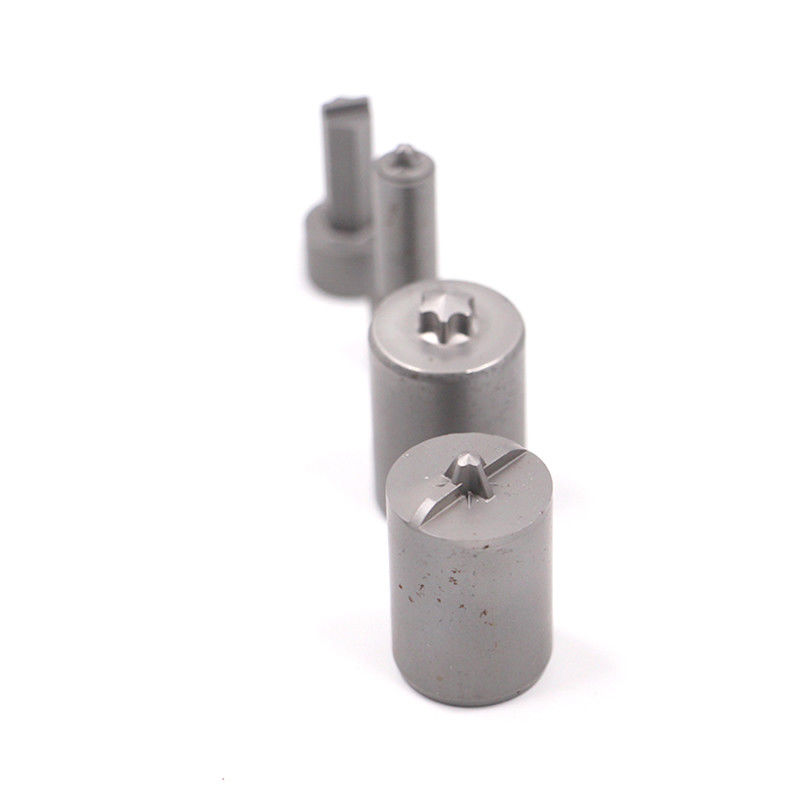

TiN Coating Second Punch With Precision Material M42

Products Description

Material:

M42(H59)＞M35(H55)＞M2(H9)

H9(M2)		H9(M2)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.85	0.33	0.34	0.027	0.005	4.12	4.73	1.78	5.74
	Cu	Ni
	0.12	0.24

M42(SKH59)		H9(M2)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	1.06	0.3	0.31	0.018	0.002	3.74	9.29	1.1	1.34
	Cu	Ni	Co
	0.07	0.29	7.97

Header punch standard:

JIS, ANSI, DIN, ISO, BS, GB, and NON-STANDARD .
The common head style:
Flat head, pan head , oval head , binding head , round head, truss head, button head, pf head, cheese head, fillister head and so on .
The common driver:
Phillips , Phillips and slot combination, slotted, hexagon, six-lobe (torx), six-lobe tamper , six-lobe/slot , pozidriv , square,
square/slot , Phillips/square, triangle and so on .
