Name: HSS TIN Coating Punch Wire Nail And Screw Header Punch Wear Resistant
Brand: Dongguan Fanchi Mold Technology Co., Ltd
SKU: customized
Price: 3.00 USD
Availability: InStock

Home > products > Second Punch >

HSS TIN Coating Punch Wire Nail And Screw Header Punch Wear Resistant

HSS TIN Coating Punch

HSS Screw Header Punch

Screw Header Punch Wear Resistant

Place of Origin:

Chongqing, China

Brand Name:

henghui

Model Number:

customized

Request A Quote

Product Details

Product Name:

Wire Nail And Screw Header Punch

Shaping Mode:

Forging Mould

Product Material:

HSS

Product:

Vehicle Mould

Size:

12*25,14*25,18*25,23*25

Service:

OEM ODM

Mould Life:

250000-300000shots

Surface Treatment:

Polishing

Material:

HSS,M2,M42

Design Software:

CAD

Feature:

Wear-resisting

Advantage:

Reasonable

Application:

Screw

Port:

Shanghai, Chongqing, Shenzhen

Name:

Second Punch

Highlight:

HSS TIN Coating Punch

HSS Screw Header Punch

Screw Header Punch Wear Resistant

Payment & Shipping Terms

Minimum Order Quantity

10 pieces

Price

$2.00 - $5.00/pieces

Packaging Details

Carton cases

Supply Ability

2000 Piece/Pieces per Month

Henghui High Quality M2+TIN Phillips Header Punch For Screw Second Punch

Get Best Price

Henghui High Level Precision Customised Screw Second Punches Header

Get Best Price

Henghui Punching Mold Shaping Mode JMR M6.0 Screw Header Second Punches Surface Coating TiN

Get Best Price

2023 customized M2+TIN Phillips Header Punch Second Punch for Screw

Get Best Price

Contact Now

Product Description

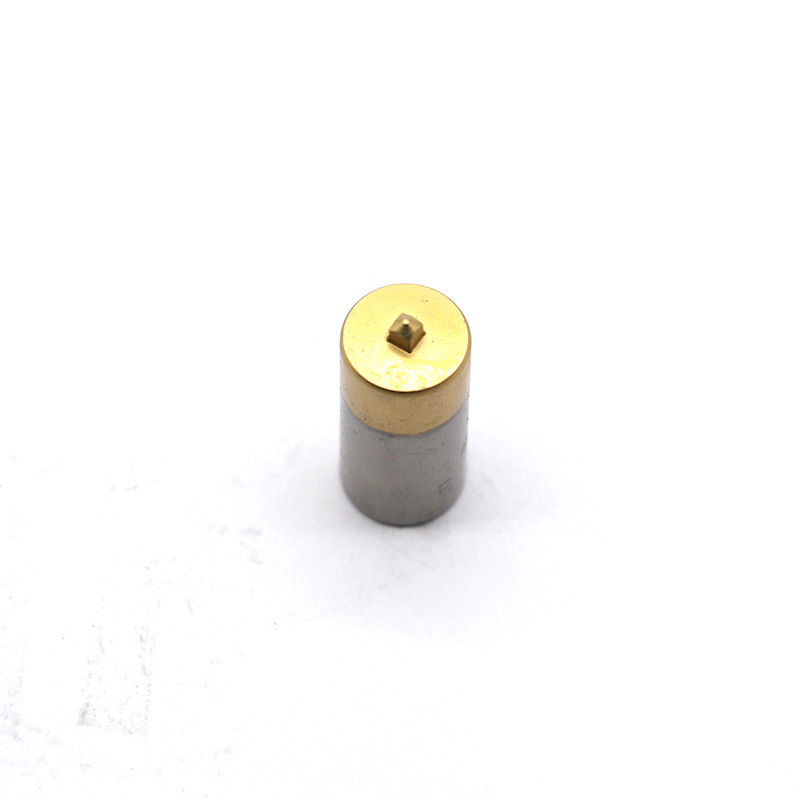

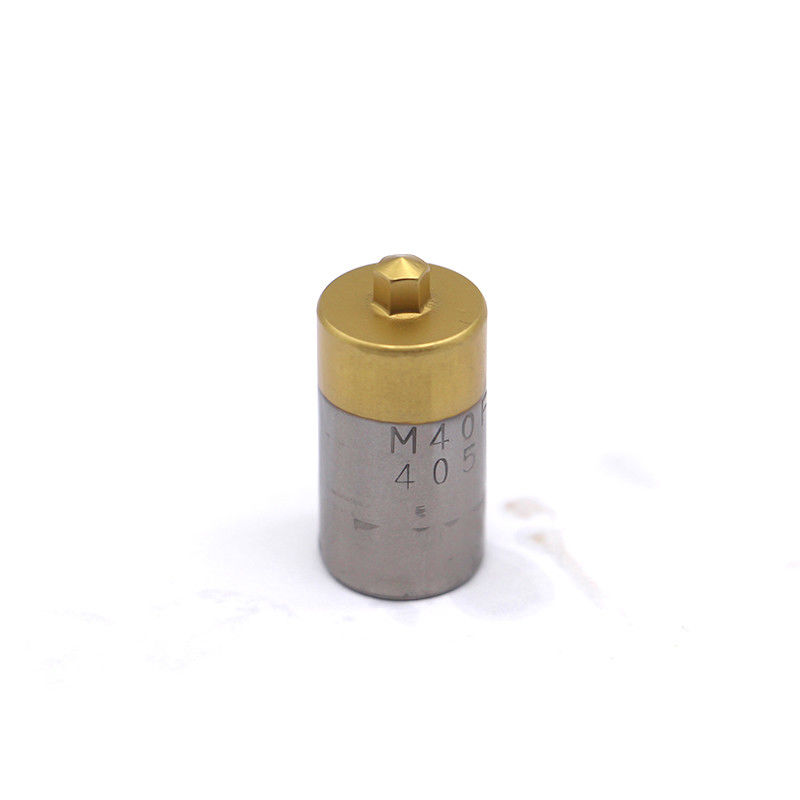

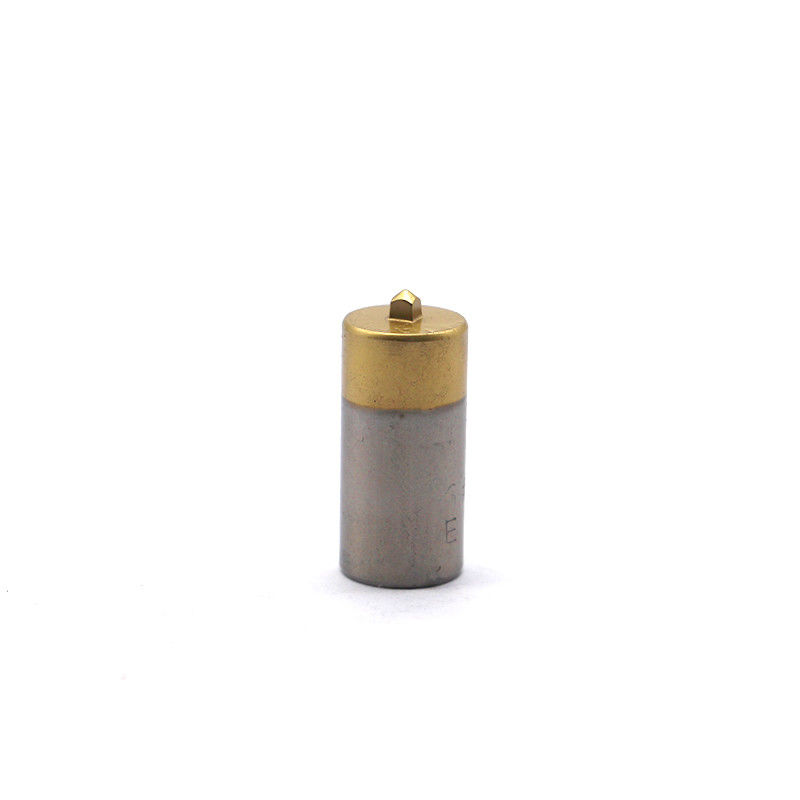

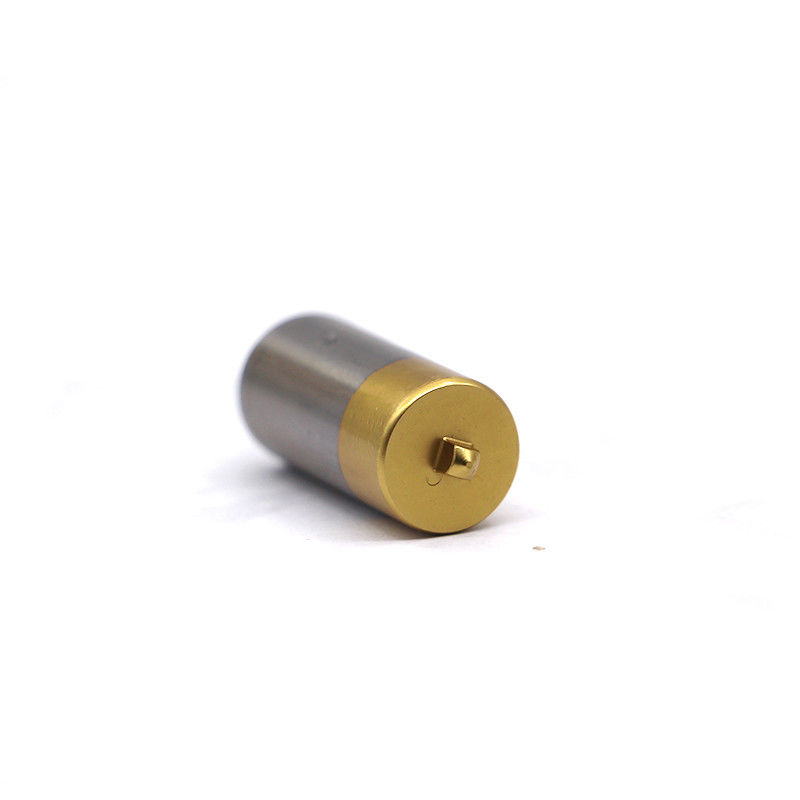

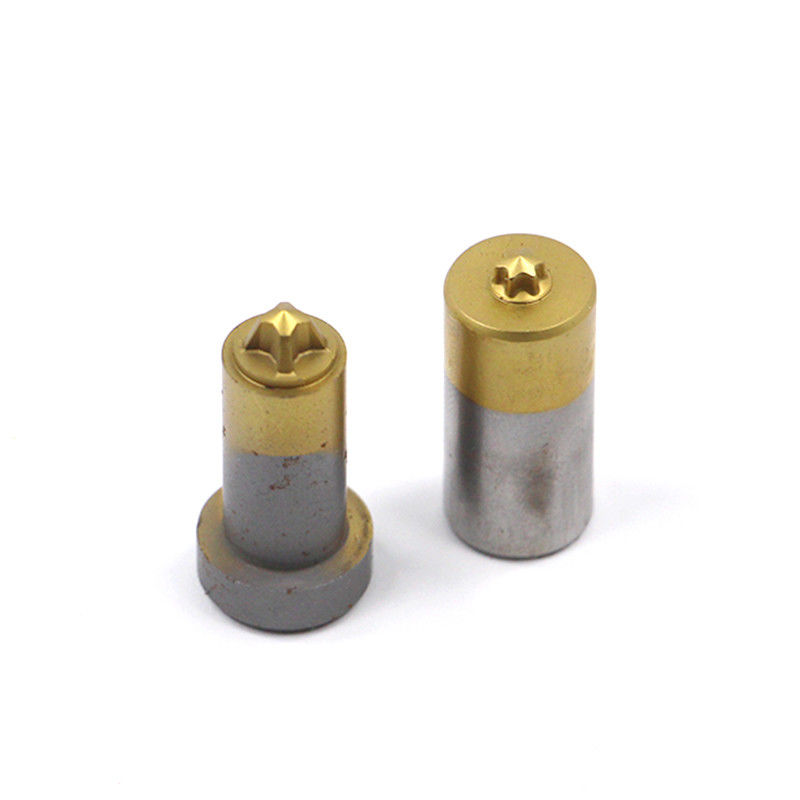

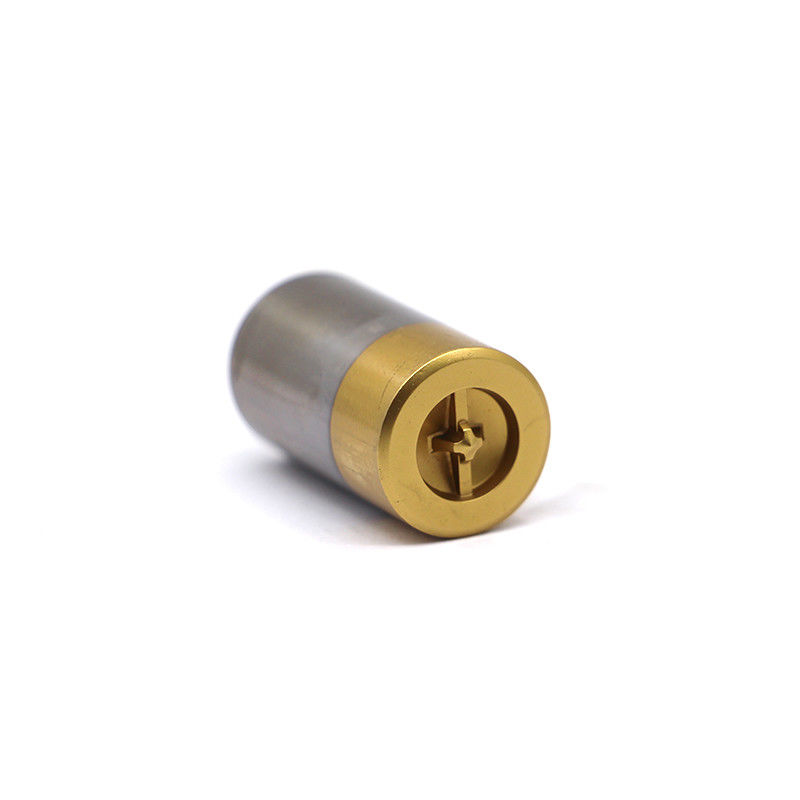

HSS TIN Coating Punch Wire Nail And HSS Long Life Service Screw Header Punch

Products Description

Material:

M42(H59)＞M35(H55)＞M2(H9)

H9(M2)		H9(M2)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.85	0.33	0.34	0.027	0.005	4.12	4.73	1.78	5.74
	Cu	Ni
	0.12	0.24

M42(SKH59)		H9(M2)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	1.06	0.3	0.31	0.018	0.002	3.74	9.29	1.1	1.34
	Cu	Ni	Co
	0.07	0.29	7.97

Header punch standard:

JIS, ANSI, DIN, ISO, BS, GB, and NON-STANDARD .
The common head style:
Flat head, pan head , oval head , binding head , round head, truss head, button head, pf head, cheese head, fillister head and so on .
The common driver:
Phillips , Phillips and slot combination, slotted, hexagon, six-lobe (torx), six-lobe tamper , six-lobe/slot , pozidriv , square,
square/slot , Phillips/square, triangle and so on .

Surface Treatment:

Without coating,
With TIN coating-yellow coated,
With TILAN coating-black coated

Standard size	Weight
12x25mm	25g/pc
14x25mm	30g/pc
18x25mm	50g/pc
23x25mm	80g/pc

Process

Factory

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Exhibition

Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.

Packing and Delivering

Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.

Inspection equipment

FAQ

Q1: How can I get a quotation from your company?

A1: Contact us.In order to quote you as soon as possible, we need the following information: drawings, Material , Quantity ,Surface treatment.

Q2: What is our lead time?

A2: This will be based on the number of products you customize and the country you are in.
